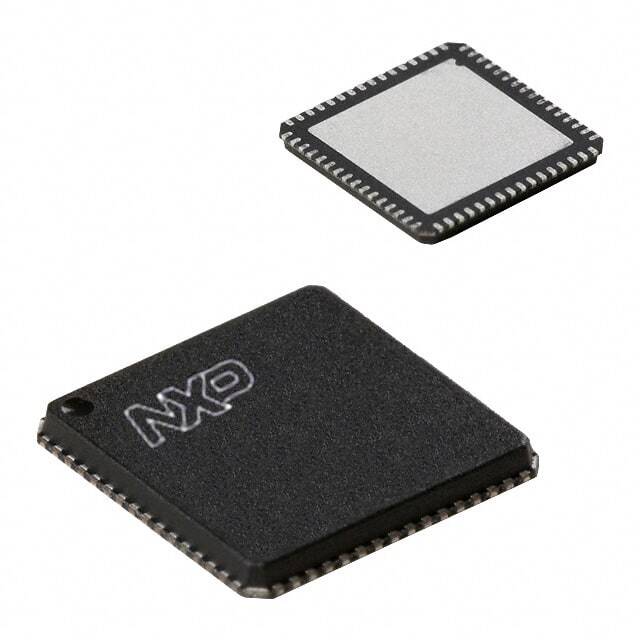

NXP LPC2138FHN64/01,55 Microcontroller

The LPC2138FHN64/01,55 is a high-performance microcontroller designed by NXP Semiconductors, featuring a 32-bit ARM7TDMI-S CPU core. This versatile microcontroller is ideal for embedded applications requiring a balance between performance and power efficiency. With its robust architecture and comprehensive feature set, the LPC2138FHN64/01,55 is well-suited for a wide range of applications such as industrial control systems, medical devices, automotive electronics, and communication gateways.

Key Features:

• CPU: 32-bit ARM7TDMI-S processor capable of running up to 60 MHz, providing excellent computational power and efficiency.
• Memory: Equipped with 512 KB of on-chip flash memory and 32 KB of static RAM (SRAM), facilitating complex program execution and data storage.
• Digital Peripherals: Includes multiple 32-bit timers, an advanced PWM unit, and up to 45 fast GPIO lines for versatile digital interfacing.
• Analog Features: Features a 10-bit ADC with multiple channels, enabling the microcontroller to interface with various analog sensors and devices.
• Communication Interfaces: Offers a range of serial communication options such as UART, I2C, SPI, and CAN, allowing for flexible connectivity with other components and systems.
• Package: Available in a compact 64-pin LQFP package, minimizing the footprint on PCBs and making it suitable for space-constrained applications.
• Power Management: Supports multiple power-saving modes, including Idle and Power-down modes, to optimize power consumption for battery-powered and energy-sensitive applications.
• System Clock: Can be driven by an on-chip RC oscillator, an external crystal, or an external oscillator, providing flexible clocking options to meet various system requirements.
• Vector Interrupt Controller: Incorporates a vectored interrupt controller for low-latency interrupt processing, enhancing system responsiveness.
• In-System Programming (ISP) & In-Application Programming (IAP): Allows for firmware updates in the field without the need for additional external programming equipment.

The LPC2138FHN64/01,55 microcontroller from NXP is a highly integrated and cost-effective solution that delivers the performance needed for demanding applications while maintaining a low power footprint. Its extensive set of peripherals and interfaces, combined with a robust 32-bit ARM core, make it a versatile choice for designers looking to create sophisticated and reliable embedded systems.
