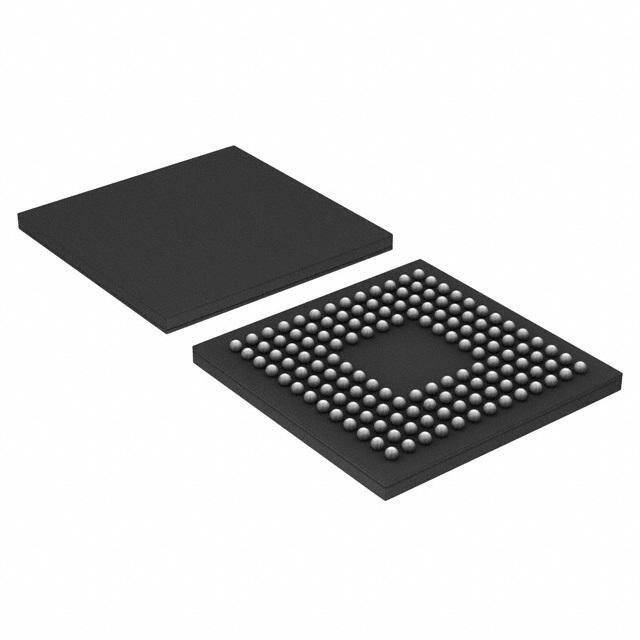

Introducing the LPC2292FET144/01,5 Microcontroller from NXP

The LPC2292FET144/01,5 is a high-performance microcontroller unit (MCU) from NXP's renowned LPC2000 family, designed to cater to the demanding needs of embedded applications. This microcontroller is based on a 16/32-bit ARM7TDMI-S CPU with real-time emulation and embedded trace support, which makes it ideal for applications that require a high level of control and processing power.

Equipped with 256 KB of on-chip high-speed flash memory, the LPC2292FET144/01,5 provides ample space for complex programs and algorithms. The flash memory also incorporates In-System Programming (ISP) and In-Application Programming (IAP) capabilities, allowing for a versatile and flexible approach to firmware updates and maintenance. Additionally, the MCU boasts 16 KB of static RAM, ensuring efficient handling of temporary data and operational variables.

Key Features:

• 16/32-bit ARM7TDMI-S processor core operating at up to 60 MHz.
• 256 KB of on-chip flash program memory with ISP and IAP.
• 16 KB of on-chip static RAM (SRAM).
• Versatile 144-pin LQFP (Low-profile Quad Flat Package) for a compact footprint.
• Multiple 32-bit timers, an advanced PWM unit, and a Real-Time Clock (RTC) with optional battery backup.
• Two 10-bit ADCs offering a total of 14 channels and up to 2.44 MSPS conversion rate.
• Two I2C-bus interfaces, two Serial Peripheral Interfaces (SPI), and four UARTs for serial communication.
• Up to 104 general-purpose I/O pins for maximum peripheral interfacing.
• Integrated CAN interface with acceptance filters.
• On-chip oscillator and PLL for CPU clock generation.

The LPC2292FET144/01,5 is designed for robust communication and connectivity, featuring multiple serial interfaces including I2C, SPI, and UARTs, which are essential for modern control systems. The integrated CAN interface with acceptance filters ensures reliable data transmission in automotive and industrial networks, where data integrity and error handling are critical.

With its comprehensive set of peripherals, the LPC2292FET144/01,5 is an excellent choice for applications such as industrial control systems, automotive electronics, robotics, and other embedded systems that require high-speed processing and communication capabilities. NXP's commitment to quality and performance ensures that the LPC2292FET144/01,5 MCU stands out as a robust and versatile solution for complex and demanding applications.
