NXP LPC2478FBD208 Microcontroller

The NXP LPC2478FBD208 microcontroller is a high-performance, 16/32-bit ARM7TDMI-S CPU with a wide range of integrated peripherals. This microcontroller is designed for embedded applications that require a sophisticated set of features such as an advanced graphic LCD controller, connectivity, and versatile general-purpose input/output capabilities. The LPC2478FBD208 is an ideal choice for applications in industrial control, medical systems, and any other system that demands high-speed computing and advanced communication interfaces.

Key Features:

• Core: ARM7TDMI-S processor, running at up to 72 MHz.
• Memory: 512 KB of on-chip high-speed flash memory, 98 KB of SRAM, and 4 KB of EEPROM.
• Display Interface: Integrated LCD controller supporting both STN and TFT displays.
• Communication Interfaces: Multiple serial interfaces including USB 2.0 Full-speed device/host/OTG, 4 UARTs, Fast I²C-bus (400 kbit/s), 3 SPI/SSP, and CAN 2.0B.
• Advanced Peripherals: 10-bit ADC and DAC, PWM unit, and Motor control PWM for controlling three-phase motors.
• Timers: Multiple 32-bit timers, an external event counter, a watchdog timer, and a real-time clock with optional battery backup.
• Power Management: Integrated power control with Idle and Power-down modes for energy efficiency.

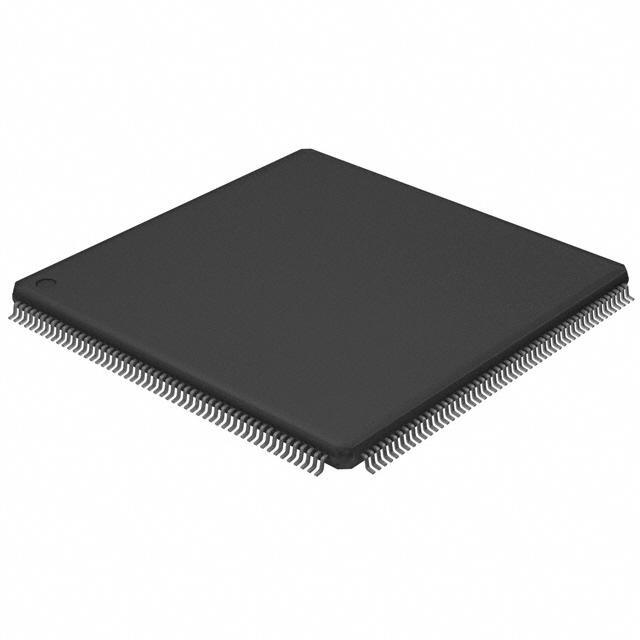

• Package: 208-pin LQFP package, providing a compact footprint for space-constrained applications.
• Debugging and Support: JTAG and Embedded Trace interfaces for comprehensive debugging.

Applications:

The LPC2478FBD208 is suitable for a multitude of applications, particularly where high data bandwidth and advanced communication protocols are required. Its robust feature set is well-suited for:

• Industrial automation and process control
• Medical equipment and healthcare devices
• Point-of-sale systems
• Networking systems and smart gateways
• Automotive and transportation
• Complex user interfaces with graphic displays

With its comprehensive set of features and capabilities, the NXP LPC2478FBD208 microcontroller is a versatile and powerful component for designing sophisticated electronic systems.
