The NXP LPC54101J256UK49Z is a high-performance microcontroller designed for a wide range of applications, particularly those that require low power consumption and advanced connectivity features. This microcontroller is part of the LPC54000 series, which is known for its efficiency and reliability in embedded systems.

Key Features

• Core: The LPC54101J256UK49Z is equipped with a dual-core architecture that includes an ARM Cortex-M4F and a Cortex-M0+ processor. The Cortex-M4F core runs at up to 100 MHz, providing ample processing power for computationally intensive tasks, while the Cortex-M0+ core is optimized for power efficiency and can be used for offloading background tasks.
• Memory: This microcontroller comes with 256 KB of on-chip flash memory and 64 KB of SRAM, providing sufficient space for code and data storage for a variety of applications.
• Power Efficiency: Designed with power efficiency in mind, it features multiple power modes including Sleep, Deep-sleep, and Power-down modes. This allows for significant power savings, making it ideal for battery-powered and portable devices.
• Connectivity: The LPC54101J256UK49Z offers a range of connectivity options including SPI, I2C, USART, and 12-bit ADCs with sample rates of up to 4.8 Msamples per second, ensuring flexible communication with peripherals and sensors.

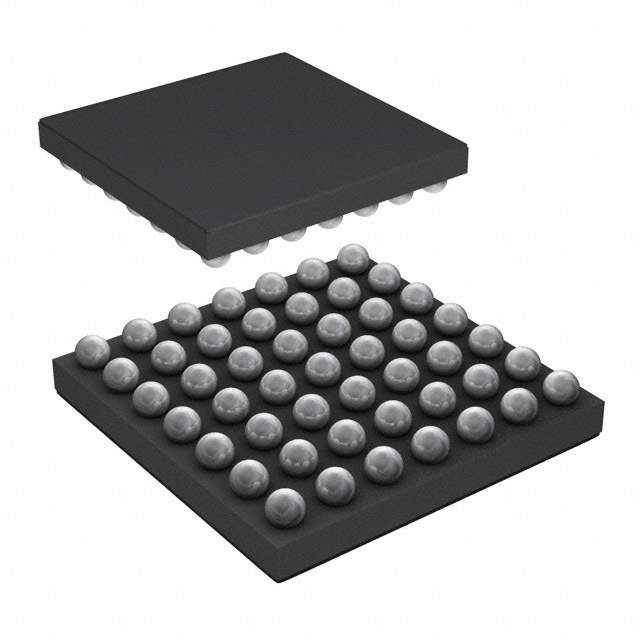

• Packages: It is available in a compact 49-pin WLCSP (wafer level chip-scale package), which is perfect for space-constrained applications.

Applications

The versatility of the LPC54101J256UK49Z makes it suitable for an array of applications such as IoT devices, sensor hubs, gaming accessories, smart home devices, and portable medical equipment. Its low power capabilities also make it a great choice for wearable technology and smart battery management systems.

Development Support

NXP provides comprehensive development support for the LPC54101J256UK49Z with its software development kits, which include extensive libraries and example code to help accelerate the development process. Additionally, the microcontroller is supported by popular integrated development environments (IDEs) like Keil MDK, IAR EWARM, and NXP's own MCUXpresso IDE.
