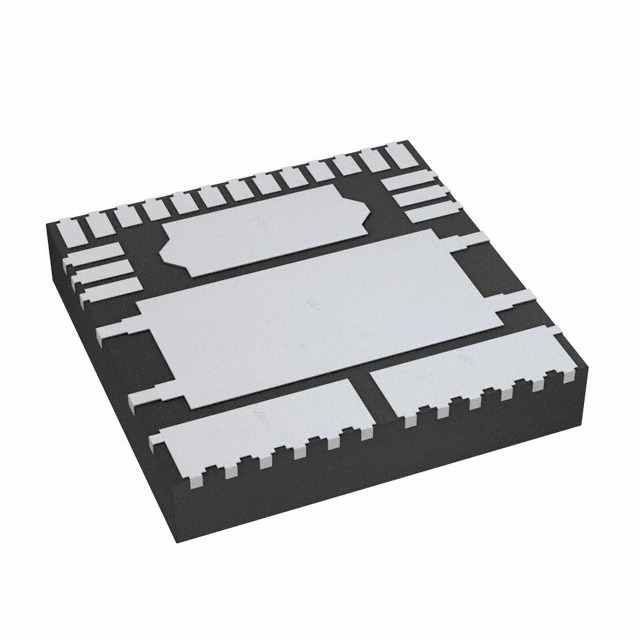

The NXP MC16XSD200FK is a state-of-the-art dual high side switch designed for automotive and industrial applications. This advanced product is part of NXP's extensive portfolio of smart power drivers that provide high-performance and reliable solutions for driving solenoids, incandescent bulbs, and other high-current loads with diagnostic and protection features.

Key Features

• Integrated Dual Channel: The device features two independent high side switch channels, allowing it to control two separate loads with a single compact component.
• High Load Current: Each channel can handle continuous load currents up to 20A, making it suitable for high-power applications.
• Low On-Resistance: The low on-resistance of the output stages ensures efficient operation and reduced power dissipation, enhancing the overall performance of the system.
• Multiple Diagnostic Functions: Built-in diagnostic capabilities include open load detection in on and off states, short-circuit to battery, and overtemperature shutdown, which contribute to the safety and reliability of the system.
• Protection Features: The device includes protection against overcurrent, undervoltage, and overvoltage, ensuring the longevity and stable operation of the application.
• Wide Operating Voltage Range: It operates over a wide voltage range from 6V to 28V, accommodating a variety of automotive battery conditions.

Applications

The MC16XSD200FK is ideally suited for a broad range of applications, including but not limited to:

• Automotive lighting systems
• Automotive power distribution
• Heating systems
• Motor control units

Technical Specifications

For those seeking a robust and versatile solution for their high-current load control needs, the NXP MC16XSD200FK provides an exceptional blend of performance, diagnostics, and protection in a single package.
