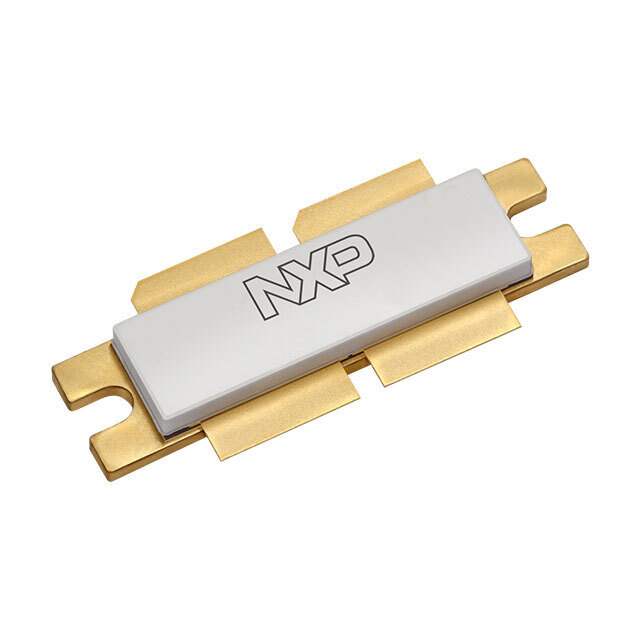

The NXP MMRF1006HR5 is a high-performance RF power LDMOS transistor designed for a wide range of applications, including broadcast transmission, industrial, scientific, medical, and RF energy. This device is part of NXP's robust and reliable high-power technology, which is renowned for its high efficiency and thermal stability.

Key Features

• Frequency Range: The MMRF1006HR5 operates at a frequency range of 1.8 to 600 MHz, making it versatile for various RF applications.
• High Output Power: With a high output power of 125 Watts CW, this LDMOS transistor is capable of delivering significant power for demanding applications.
• High Gain: It offers a high gain of 18.4 dB, ensuring strong signal amplification.
• Efficiency: The MMRF1006HR5 boasts an excellent efficiency of up to 72%, reducing energy consumption and heat generation.
• Integrated ESD Protection: It features integrated ESD protection, which enhances the device's robustness and longevity by safeguarding it against electrostatic discharge events.
• Thermal Performance: Its superior thermal performance is attributed to the advanced LDMOS technology, which ensures reliable operation even under high-temperature conditions.

Applications

• Industrial, Scientific, and Medical (ISM) applications
• Broadcast transmitters for radio and television
• RF energy applications, including plasma generation, cooking, and heating
• Aerospace and defense systems
• High-power amplifiers for cellular and wireless infrastructure

Product Specifications

Overall, the NXP MMRF1006HR5 is a robust and efficient solution for designers seeking a high-power RF transistor that combines performance with reliability. Its broad frequency range and high power output make it an excellent choice for a variety of RF applications.
