The MRF6S20010GNR1 is a high-performance RF power transistor designed by NXP Semiconductors. This device is a part of NXP's renowned RF MOSFET family, specifically engineered to deliver superior power and efficiency for a wide range of radio frequency applications. The MRF6S20010GNR1 is particularly suitable for mobile and fixed wireless applications, including but not limited to, base station, commercial radio, and general RF power amplification tasks.

Key Features

• Frequency Range: The MRF6S20010GNR1 operates within the 1.8-2.0 GHz frequency range, making it ideal for various communication bands, including GSM, PCS, and LTE.
• High Output Power: With a capability to deliver up to 10W of continuous wave (CW) power, this transistor is designed to provide robust output for high-demand applications.
• High Gain: It offers a high gain of 14 dB, ensuring efficient signal amplification and minimizing the need for additional stages.
• High Efficiency: The device boasts an excellent efficiency rate, which helps in reducing power consumption and heat dissipation, leading to more reliable and sustainable operation.
• Integrated ESD Protection: Built-in electrostatic discharge (ESD) protection enhances the durability and longevity of the transistor by safeguarding it against sudden voltage spikes.

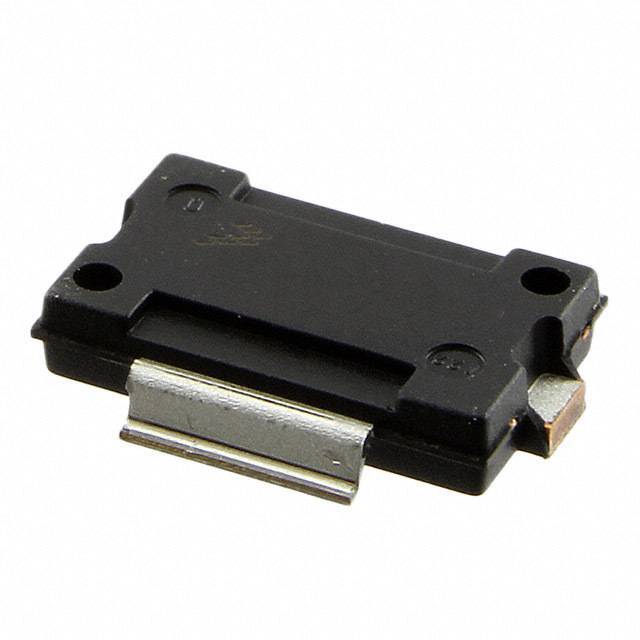

• Thermally Enhanced Package: The MRF6S20010GNR1 comes in a compact, surface-mount package with enhanced thermal properties, facilitating heat management and simplifying PCB design.

Applications

The versatility of the MRF6S20010GNR1 allows it to be utilized in a variety of RF applications. This includes but is not limited to:

• Wireless Base Stations
• RF Power Amplifiers
• Commercial Two-Way Radio Systems
• Private Mobile Radios
• Telecommunications Systems
• Aerospace and Defense Communications

With its combination of power, efficiency, and reliability, the MRF6S20010GNR1 from NXP Semiconductors represents a leading solution for designers looking to enhance the performance of their RF communication systems.
