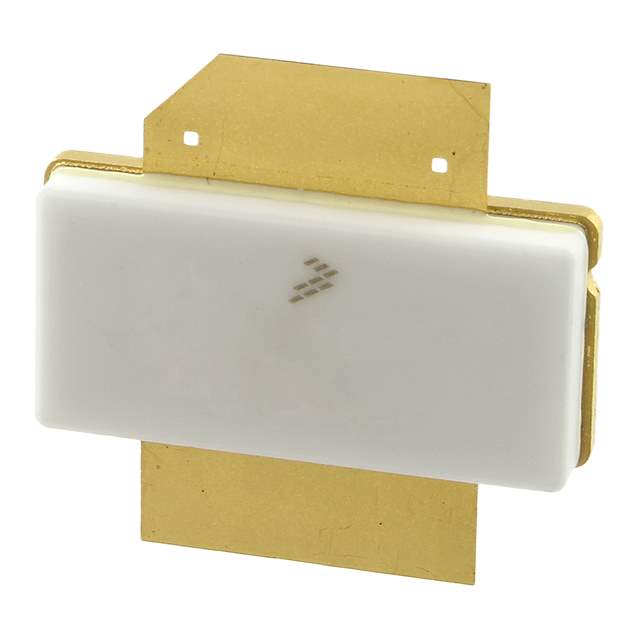

The MRF6V14300HSR5 is a high-performance RF power LDMOS transistor designed and manufactured by NXP Semiconductors. This device is part of NXP's renowned RF power transistor lineup, tailored for use in a variety of applications, including broadcast, industrial, scientific, and medical (ISM) applications.

Key Features

• Frequency Range: The MRF6V14300HSR5 operates at a frequency range of 1.43-1.50 GHz, making it suitable for high-frequency applications.
• High Output Power: With a high output power capability of 300 W CW, this transistor can deliver the power needed for demanding applications.
• High Gain: It features a high gain of 23 dB, ensuring efficient signal amplification.
• High Efficiency: The device offers high efficiency of 70%, which is beneficial for systems that require energy-saving operations.
• Ruggedness: The MRF6V14300HSR5 is designed to withstand a load mismatch ratio (VSWR) of 10:1 at 50 V, providing robustness in harsh operating conditions.
• Integrated ESD Protection: Electrostatic discharge protection is integrated into the device for enhanced reliability and longevity.
• Thermally Enhanced Package: It comes in a thermally enhanced package that facilitates better heat dissipation, allowing for stable operation over extended periods.

Applications

The MRF6V14300HSR5 is designed for a variety of applications, particularly where high power and efficiency are required. It is commonly used in:

• Broadcast transmitters for radio and television
• Industrial heating and welding equipment
• Medical equipment such as MRI machines and RF ablation
• Scientific research equipment
• Plasma generation
• Particle accelerators

Conclusion

The MRF6V14300HSR5 from NXP Semiconductors is a robust and efficient solution for high-power RF applications. Its combination of high gain, high efficiency, and ruggedness makes it a preferred choice for designers looking to enhance the performance and reliability of their RF systems.
