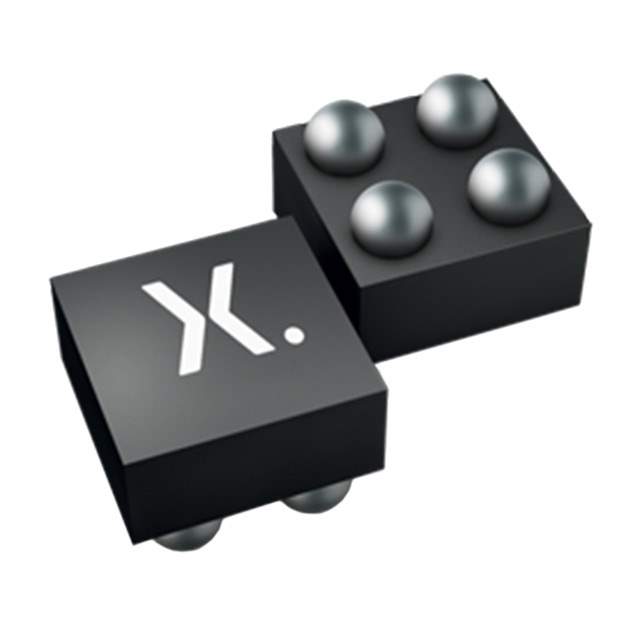

The NXP NX3P1108UKZ is a versatile, high-speed USB 2.0 switch designed for a variety of applications that require USB signal switching. It is a part of NXP's advanced switch portfolio, which is renowned for its reliability and performance. The NX3P1108UKZ is particularly suitable for mobile phones, tablets, and other portable devices where USB connectivity is essential.

Key Features

• USB 2.0 Compliance: The NX3P1108UKZ supports high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5 Mbps) data rates, ensuring compatibility with various USB standards.
• Low On-Resistance: With a low on-resistance of typically 6 Ω, this switch ensures minimal signal distortion and voltage drop, providing a reliable connection for USB data lines.
• Low Power Consumption: Designed for power-sensitive applications, it features a low power consumption that extends battery life in portable devices.
• Single Supply Operation: The device operates from a single supply voltage in the range of 2.7 V to 5.5 V, compatible with most system voltage levels.
• ESD Protection: The switch includes ±8 kV Human Body Model (HBM) ESD protection on the VBUS pin, ensuring robustness against electrostatic discharges.
• Compact Package: Housed in a small 10-bump WLCSP (Wafer Level Chip-Size Package), the NX3P1108UKZ is ideal for space-constrained applications.

Applications

The NX3P1108UKZ is engineered for use in a wide range of applications that require USB signal routing. These include, but are not limited to:

• Smartphones and tablets
• Laptop and desktop computers
• Portable media players
• Wearable technology
• USB hubs and docking stations

With its robust design and comprehensive feature set, the NXP NX3P1108UKZ is an excellent choice for designers looking to integrate USB switching capability into their products while maintaining signal integrity and minimizing power consumption.
