Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microprocessors
Mfr NXP USA Inc.
Series QorIQ P1
Package Tray
Product Status Obsolete
Core Processor PowerPC e500v2
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 1.067GHz
Co-Processors/DSP Security; SEC
RAM Controllers DDR2, DDR3
Graphics Acceleration No
Display & Interface Controllers LCD
Ethernet 10/100/1000Mbps (2)
SATA SATA 3Gbps (2)
USB USB 2.0 + PHY (2)
Temperature Range - Operating 0°C ~ 105°C (TA)
Security Features Cryptography, Random Number Generator
Mounting Type Surface Mount

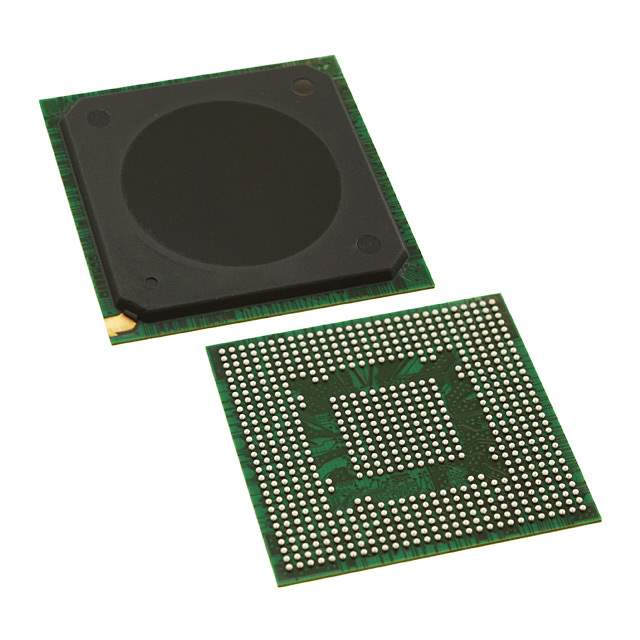

Package / Case 689-BBGA Exposed Pad
Supplier Device Package 689-TEPBGA II (31x31)
Additional Interfaces DUART, I2C, I2S, MMC/SD, SPI
Base Product Number P1013
Standard Package 1
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A002A1 FRE
HTSUS 8542.31.0001
Win Source Part Number 1346275-P1013PSE2HFA
Ultra Librarian 3D Model Ultra Librarian P1013PSE2HFA CAD Model

Description

Introducing the NXP P1013PSE2HFA Processor

The NXP P1013PSE2HFA is a high-performance, power-efficient processor that is part of the QorIQ P1 family, designed to meet the needs of a wide range of applications. This processor is built on Power Architecture technology and is particularly suited for embedded computing in networking, telecommunications, industrial control, and aerospace and defense markets.

Key Features

  • Core: The P1013PSE2HFA features a single e500 core, capable of running up to 800 MHz, providing a balance between processing power and power consumption.
  • Integrated Security: It includes an advanced encryption engine that supports a variety of algorithms, ensuring secure data transactions for sensitive applications.
  • Connectivity: This processor offers a rich set of I/O options including Gigabit Ethernet controllers, USB 2.0, and PCI Express interfaces, enabling versatile connectivity solutions.
  • Memory Support: It supports DDR2 and DDR3 memory with Error Correction Code (ECC) capabilities, which enhances the reliability and stability of the system.
  • Power Efficiency: The P1013PSE2HFA is designed with power management features that enable energy-efficient operation, making it ideal for environmentally conscious deployments.

Applications

With its robust feature set, the NXP P1013PSE2HFA processor is well-suited for a variety of applications, including:

  • Enterprise and service provider networking equipment such as routers, switches, and security appliances.
  • Industrial control systems requiring reliable, long-term operation in harsh environments.
  • Aerospace and defense systems where secure and power-efficient processing is critical.

Design Support

NXP provides comprehensive design support for the P1013PSE2HFA, including reference manuals, datasheets, and technical support, to facilitate system design and speed up time-to-market. Developers can access a wide range of tools and software, including development kits and integrated development environments (IDEs), to streamline the development process.

Overall, the NXP P1013PSE2HFA is a versatile, secure, and energy-efficient processor that offers a compelling solution for a multitude of embedded computing applications.
