NXP PESD5V0U4BW Ultra Low Capacitance ESD Protection Diode

The NXP PESD5V0U4BW is a state-of-the-art Electrostatic Discharge (ESD) protection device designed to safeguard high-speed data lines from damaging ESD strikes. This compact, four-line bidirectional ESD protection diode is specifically engineered to protect sensitive electronic components in applications where signal integrity is paramount. Its ultra-low capacitance and low clamping voltage make it an ideal choice for protecting USB 2.0, HDMI, LVDS, and other high-speed data interfaces.

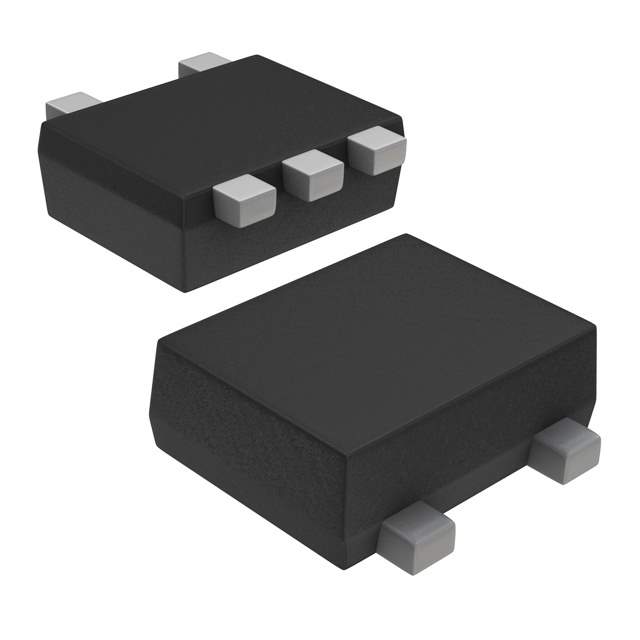

The device features NXP's advanced silicon technology, which provides a robust shield against ESD events, ensuring the reliability and longevity of consumer electronics, telecommunications equipment, and computing devices. With its small SOT (Small Outline Transistor) 665-1 package, the PESD5V0U4BW is designed for space-conscious applications, allowing for efficient use of PCB real estate without compromising on protection capabilities.

Key Features:

• Ultra-low Capacitance: Typically just 0.4 pF, this feature minimizes signal attenuation, preserving the integrity of high-speed signals.
• Low Clamping Voltage: Offers enhanced protection for sensitive circuits by limiting the voltage spikes during ESD events.
• High ESD Protection Level: With an ESD protection level of up to ±20 kV, it exceeds the IEC 61000-4-2 standard, providing superior protection against common ESD occurrences.
• Four Bidirectional ESD Protection Diodes: Integrated in a single package, it simplifies design and enhances protection for multiple data lines.
• Low Leakage Current: Ensures minimal power consumption when the device is in standby mode, contributing to the energy efficiency of the overall system.
• Small Form Factor: The SOT665-1 package allows for a compact footprint on printed circuit boards.

Applications:

• USB 2.0 interfaces
• HDMI ports
• LVDS signal lines
• High-speed data lines requiring minimal signal distortion

The PESD5V0U4BW from NXP is a versatile ESD protection solution that offers a perfect blend of performance, efficiency, and space-saving design, making it an excellent choice for protecting today's sophisticated electronic circuits against the rigors of ESD events.
