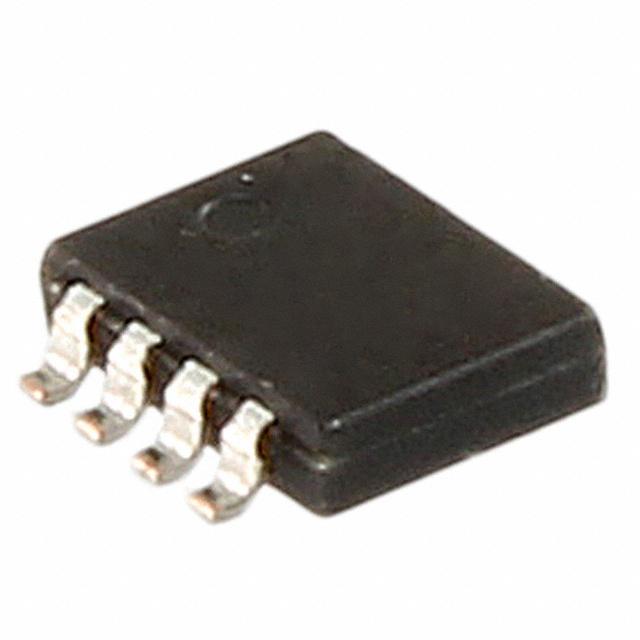

Product Overview: PSMN011-60MSX from NXP Semiconductors

The PSMN011-60MSX is a robust and efficient N-channel MOSFET developed by NXP Semiconductors, a leader in the field of high-performance mixed-signal electronics. This power MOSFET is designed to handle high currents and voltages with remarkable efficiency, making it an ideal choice for a wide range of applications, including power supplies, motor control, and automotive systems.

Key Features

• Low On-State Resistance: The PSMN011-60MSX features an exceptionally low on-state resistance (R<sub>DS(on)) of just 11 mΩ at V<sub>GS = 10 V, which helps in reducing power losses and improving overall efficiency.
• High Current Capability: With a continuous drain current (I<sub>D) rating of up to 120 A, this MOSFET can handle significant power levels, making it suitable for demanding applications.
• Advanced TrenchMOS Technology: Utilizing NXP's cutting-edge TrenchMOS silicon technology, the PSMN011-60MSX offers superior performance characteristics, including fast switching speeds and improved gate charge characteristics.
• High Temperature Operation: Capable of operating at junction temperatures up to 175°C, this MOSFET ensures reliable performance even under extreme conditions.
• Robust Package: Encased in a TO-220 package, the PSMN011-60MSX is designed for easy mounting and heat dissipation, contributing to its durability and long service life.

Applications

The versatility of the PSMN011-60MSX MOSFET allows it to be used in a variety of applications, such as:

• DC/DC converters and VRMs (Voltage Regulator Modules)
• Power management for computers and servers
• Automotive applications including electric power steering and DC motor drives
• Switched mode power supplies (SMPS)
• High-efficiency power inverters

Conclusion

In conclusion, the PSMN011-60MSX N-channel MOSFET from NXP Semiconductors stands out for its high current handling, low on-state resistance, and robustness in high-temperature environments. Its advanced technology and versatile package make it an excellent choice for engineers and designers looking to enhance the performance and reliability of their power management systems.
