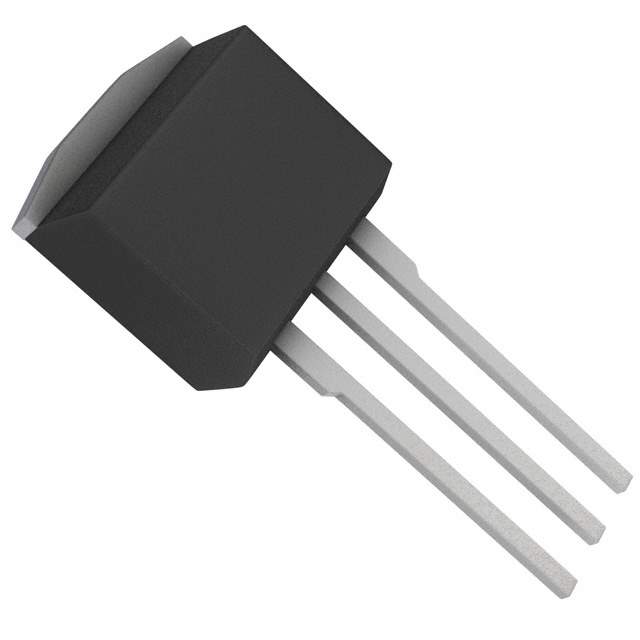

Overview of PSMN3R0-60ES MOSFET

The PSMN3R0-60ES is a high-performance, N-channel enhancement mode field-effect transistor (MOSFET) designed by NXP Semiconductors. This power MOSFET is built using NXP's advanced silicon technology, which provides superior performance in terms of switching speed, thermal characteristics, and efficiency. It is primarily intended for use in a wide range of power applications, including power supplies, DC-DC converters, motor drives, and other high-efficiency switching applications.

Key Features

• Low On-State Resistance: The PSMN3R0-60ES boasts an exceptionally low on-state resistance (R<sub>DS(on)) of just 3.0 mΩ at V<sub>GS = 10 V, minimizing power losses and improving overall efficiency.
• High Continuous Drain Current: This MOSFET can handle a high continuous drain current (I<sub>D) of up to 100 A, making it suitable for high-power applications.
• 60V Drain-Source Voltage: With a drain-source voltage (V<sub>DS) of 60V, it can be used in systems with high voltage requirements.
• Fast Switching Performance: The device's fast switching capabilities ensure minimal switching losses and are ideal for high-frequency power switching applications.
• Enhanced Thermal Performance: The PSMN3R0-60ES is encapsulated in a robust package that enhances its thermal dissipation, ensuring reliable operation even under high-temperature conditions.
• Gate-Source Voltage Protection: It features a ±20 V gate-source voltage (V<sub>GS) protection, which helps prevent gate oxide damage during operation.

Applications

The versatility of the PSMN3R0-60ES MOSFET allows it to be used in a variety of applications, including:

• Switch Mode Power Supplies (SMPS)
• Power Management Systems
• DC-DC Converters
• Motor Control Circuits
• Automotive Applications
• Power Inversion and Rectification

Reliability and Quality

NXP Semiconductors is known for its commitment to quality and reliability, and the PSMN3R0-60ES is no exception. It is designed to meet stringent industry standards, ensuring high performance and reliability for critical applications.

Overall, the PSMN3R0-60ES from NXP is an excellent choice for designers looking for a robust, efficient, and high-performing power MOSFET for their next project.
