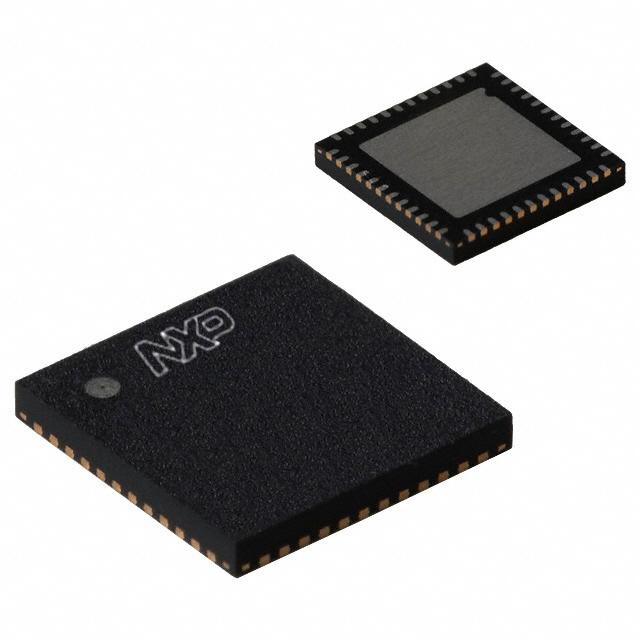

The PTN3392BS/F2,518 is a high-performance HDMI to LVDS bridge designed by NXP Semiconductors, tailored for facilitating the connection between HDMI-enabled video sources and low voltage differential signaling (LVDS) displays. This integrated circuit (IC) is specifically engineered to address the needs of modern multimedia applications, offering a seamless and efficient solution for video signal conversion.

Key Features

• HDMI 1.4 Compatibility: The device supports HDMI 1.4 input, allowing for the transmission of high-definition content, including 3D video and deep color modes.
• Dual-Port LVDS Output: It provides a dual-port LVDS output capable of driving high-resolution LCD panels, which is essential for crisp and clear image quality.
• High Resolution Support: The bridge supports display resolutions up to 1080p at 60 Hz and WUXGA (1920x1200) at 60 Hz, catering to a wide range of display requirements.
• Audio Extraction: PTN3392BS/F2,518 can extract audio from the HDMI signal, providing an I2S audio output which can be used for further audio processing or amplification.
• Integrated EDID Buffer: The IC includes an integrated Extended Display Identification Data (EDID) buffer, simplifying the display identification process and ensuring compatibility with various video sources.
• Low Power Consumption: Designed for efficiency, the device boasts low power consumption, making it ideal for battery-powered applications.
• ESD Protection: It features integrated electrostatic discharge (ESD) protection, enhancing the durability and reliability of the end product.

Applications

Due to its versatility and performance, the PTN3392BS/F2,518 is suitable for a wide range of applications, including:

• Industrial displays
• Consumer electronics
• Digital signage
• Portable computing devices
• Medical imaging equipment

Product Summary

The NXP PTN3392BS/F2,518 HDMI to LVDS bridge is a robust solution for connecting modern HDMI video sources to LVDS displays. Its comprehensive feature set ensures high-quality video and audio signal transmission, making it an excellent choice for designers and manufacturers seeking to produce advanced multimedia products with reliable display capabilities.
