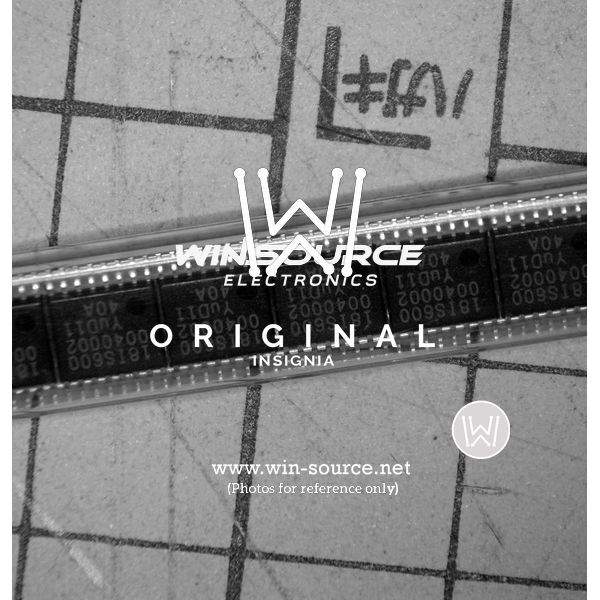

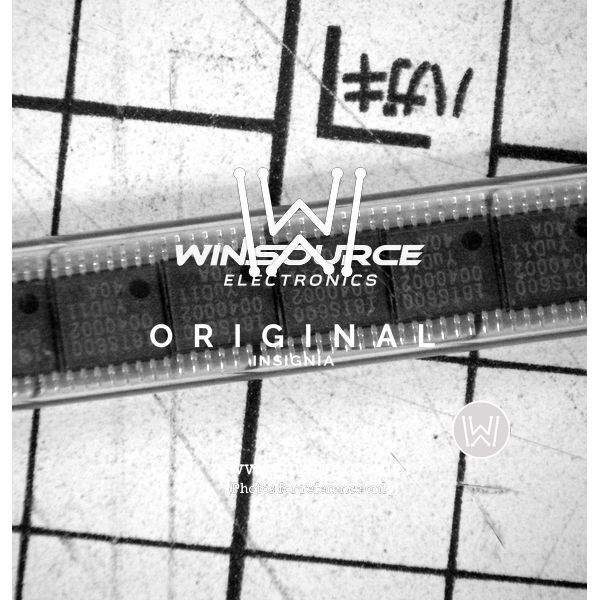

Overview of NXP SC18IS600IPW

The NXP SC18IS600IPW is a versatile and powerful interface IC designed to provide a bridge between a standard I2C-bus of a microcontroller and an SPI bus, allowing the microcontroller to communicate with SPI serial devices. This interface IC is particularly useful in applications where an additional SPI port is needed or when the microcontroller lacks an SPI port.

Key Features

• SPI Interface: The SC18IS600IPW supports multiple SPI devices, thanks to its four programmable chip select outputs. It can operate as an SPI master with a maximum clock frequency of 1.8 MHz.
• I2C Compatibility: The device is fully compatible with the I2C-bus specification and can operate at clock frequencies up to 400 kHz (Fast-mode) or 1 MHz (Fast-mode Plus).
• Buffered Data: It includes an internal 200-byte data buffer, which helps in reducing the number of I2C transactions required for bulk data transfers.
• Integrated Oscillator: With its built-in oscillator, there is no need for an external crystal, which simplifies the design and reduces the overall bill of materials.
• Power Management: The SC18IS600IPW features a low-power standby mode, making it suitable for battery-operated devices.
• Easy Configuration: Configuration and control of the SC18IS600IPW is straightforward, thanks to its simple command structure over the I2C-bus.

Applications

The flexibility and features of the SC18IS600IPW make it an excellent choice for a variety of applications, including:

• Embedded systems that require additional SPI ports
• Portable devices and battery-powered applications
• Microcontroller expansion in industrial control systems
• Data acquisition and sensor networks
• Consumer electronics

Technical Specifications

The SC18IS600IPW operates over a supply voltage range of 2.5 V to 5.5 V, and it is available in a 16-pin TSSOP package. It is designed with a robust serial interface engine that ensures reliable communication with both the I2C-bus and the SPI bus, even in noisy environments.

Conclusion

The NXP SC18IS600IPW provides a seamless and efficient way to add SPI communication capability to any I2C-capable microcontroller, making it a valuable component in a designer's toolkit for developing sophisticated multi-protocol communication systems.
