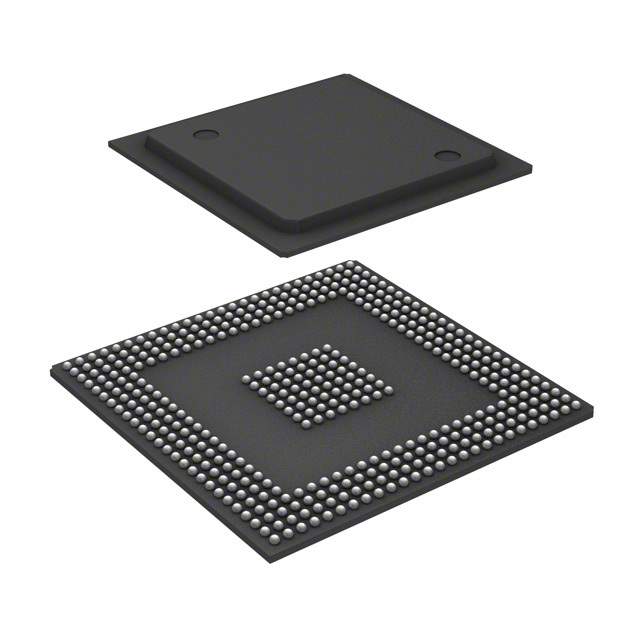

The NXP SPC5566MZP112R is a high-performance automotive microcontroller designed to meet the demanding requirements of modern vehicle applications. This powerful MCU is part of the MPC55xx/SPC56 32-bit MCU family, built on Power Architecture® technology, which is renowned for its exceptional processing capabilities and efficiency.

Key Features

• Core: The SPC5566MZP112R features a 32-bit Power Architecture e200z6 core, operating at speeds of up to 112 MHz, delivering the computational power needed for complex automotive control tasks.
• Memory: It comes equipped with 1 MB of flash memory and 64 KB of RAM, providing ample storage for applications and efficient data handling.
• Advanced Timer: The microcontroller includes a Modular I/O System (MIOS200) that supports complex timing and PWM functionalities essential for engine and motor control.
• Communication Interfaces: A range of communication interfaces such as CAN, LIN, and FlexRay are integrated, facilitating robust and flexible communication within the vehicle's network.
• Analog-to-Digital Converters (ADC): Multiple 12-bit ADCs are available for precise measurement of analog signals, crucial for sensor data acquisition.
• Enhanced Safety Features: The device incorporates features to support functional safety requirements up to ASIL-D, making it suitable for safety-critical automotive applications.

Applications

The SPC5566MZP112R is designed to address a wide range of automotive applications, including engine management systems, transmission control, chassis and safety systems, body control modules, and advanced driver-assistance systems (ADAS). Its robust feature set also makes it an excellent choice for electrification applications such as battery management and hybrid engine control.

Development Support

NXP provides comprehensive development support for the SPC5566MZP112R MCU with a suite of software tools, development kits, and reference designs to accelerate system design and reduce time-to-market. Developers can leverage NXP's SPC5-STUDIO software development environment, which offers an easy-to-use graphical interface and a rich set of development and debugging tools.

Note: For detailed technical specifications, application notes, and datasheets, please refer to the NXP official website or contact an NXP sales representative.
