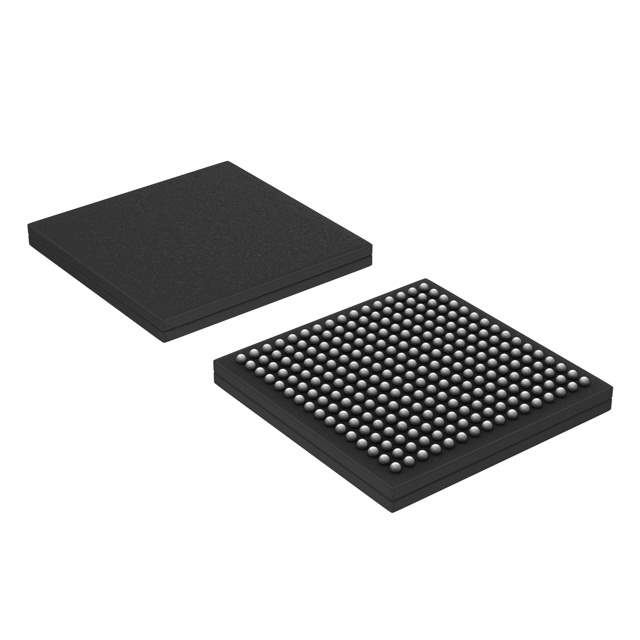

The SPC5646CK0MMJ1R is a cutting-edge microcontroller unit (MCU) from NXP's reputable SPC56 series, designed specifically for automotive and industrial applications. This powerful MCU is built on a 32-bit Power Architecture® core and is tailored to meet the stringent requirements of high-performance embedded systems.

Key Features

• Core: At the heart of the SPC5646CK0MMJ1R is a 32-bit Power Architecture® VLE (Variable Length Encoding) compliant CPU operating at speeds of up to 120 MHz, which provides an excellent balance between processing power and energy efficiency.
• Memory: This MCU comes with a generous memory configuration that includes 1 MB of flash memory for program storage and 64 KB of RAM for data processing, ensuring smooth and efficient operation of complex applications.
• Advanced Timers: Multiple advanced timers are included to support a wide range of functions such as PWM generation, input capture, and timekeeping, which are essential for control-oriented tasks.
• Communication Interfaces: The SPC5646CK0MMJ1R is equipped with numerous communication interfaces, including CAN, LIN, and FlexRay, making it highly adaptable for networking within automotive environments.
• Analog to Digital Converters (ADCs): With integrated ADCs, the MCU can interface with analog sensors and transducers, facilitating precise data acquisition and control.
• Enhanced Safety Features: Safety features such as a Memory Protection Unit (MPU), Error Correction Code (ECC) on the flash and RAM, and a watchdog timer, ensure reliable operation under various conditions.

Applications

The robust feature set of the SPC5646CK0MMJ1R makes it ideal for a range of applications, particularly in the automotive sector where it can be used in engine management systems, transmission control units, body control modules, and advanced driver-assistance systems (ADAS). Its reliability and performance also make it suitable for industrial control systems and other high-demand embedded applications.

Quality and Reliability

NXP is known for its commitment to quality, and the SPC5646CK0MMJ1R is no exception. It is designed to meet the rigorous standards of the automotive industry, including AEC-Q100 qualification, ensuring longevity and durability in harsh environments.
