The TDA8569Q/N1,112 is a high-performance integrated circuit developed by NXP Semiconductors, a leader in automotive and high-power audio solutions. This versatile IC is designed primarily for car audio applications, but it can also be used in a variety of other audio amplification scenarios.

Key Features

• Power Output: The TDA8569Q/N1,112 boasts an impressive power output, capable of delivering up to 4 x 40 W/2 Ω or 2 x 80 W/4 Ω power amplification, making it suitable for driving a wide range of speakers.
• Flexibility: This IC can operate in various configurations, including quad, stereo, and BTL (Bridge-Tied Load), providing flexibility in designing audio systems.
• Sound Quality: With its low distortion and noise levels, the TDA8569Q/N1,112 ensures high-fidelity sound reproduction, which is essential for an optimal listening experience.
• Protection Features: It includes several protection features such as short-circuit detection, thermal protection, and a switch-off feature in case of a DC offset detection, ensuring both safety and longevity of the device.
• Supply Voltage: The IC operates over a wide supply voltage range from 6 V to 18 V, accommodating various automotive power systems.

Applications

The primary application for the TDA8569Q/N1,112 is in automotive audio systems, where it provides robust and high-quality amplification. However, its features make it suitable for other audio applications such as home audio systems, portable speakers, and other consumer audio devices that require reliable and powerful sound amplification.

Package and Quality

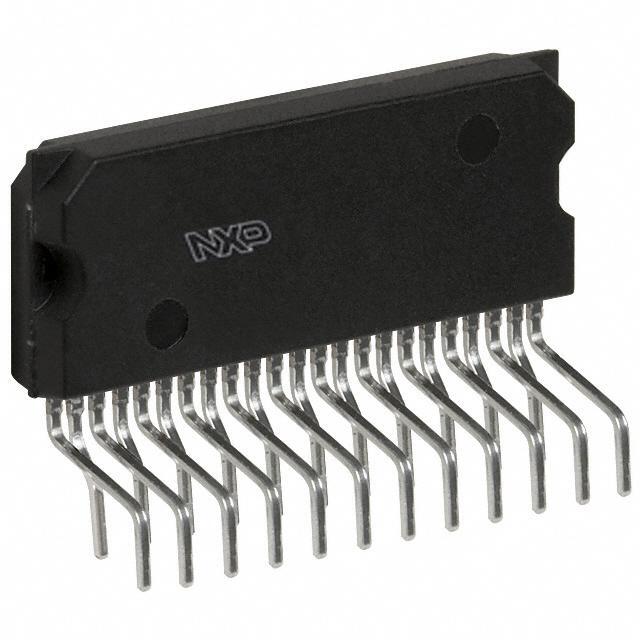

The TDA8569Q/N1,112 comes in a 23-lead SIL-bent-SIP (Single In-line Package) that is designed for heat dissipation and space-saving considerations. NXP's commitment to quality ensures that this product meets the stringent requirements of automotive and consumer electronics standards, providing a reliable solution for audio amplification needs.

With its combination of power, performance, and protection, the TDA8569Q/N1,112 from NXP is an excellent choice for designers looking to create high-quality audio systems for a variety of applications.
