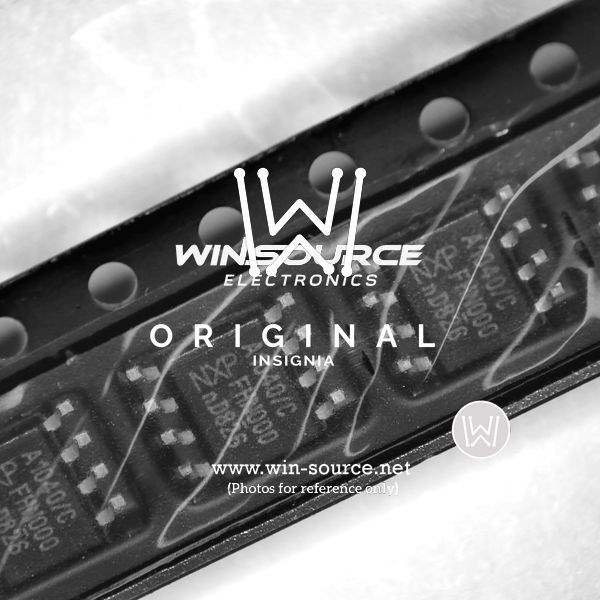

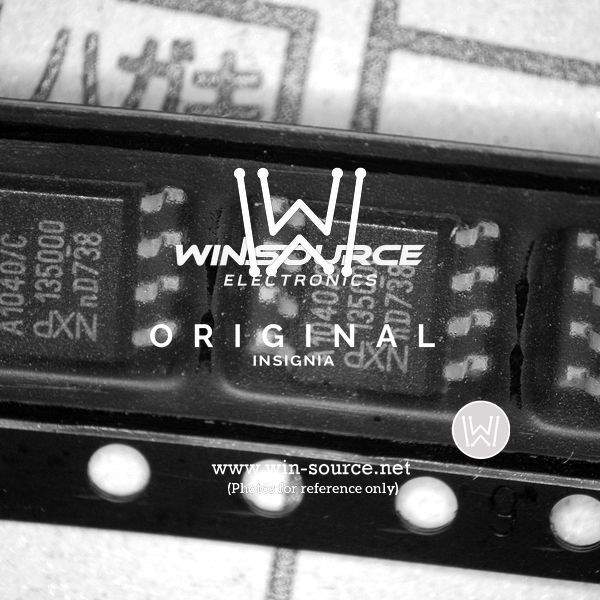

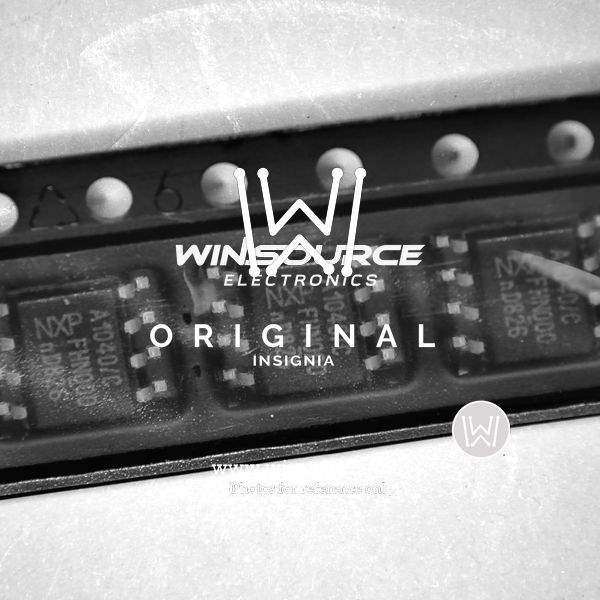

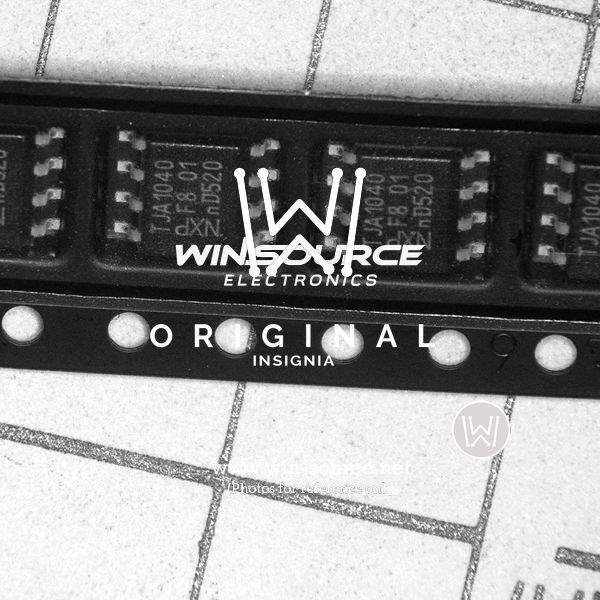

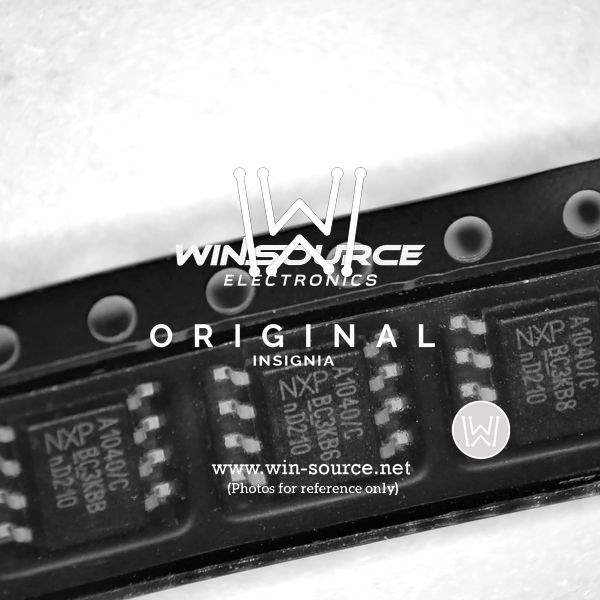

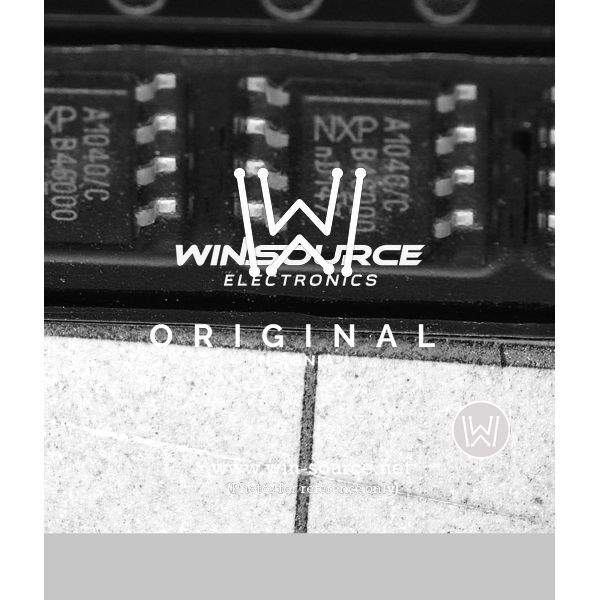

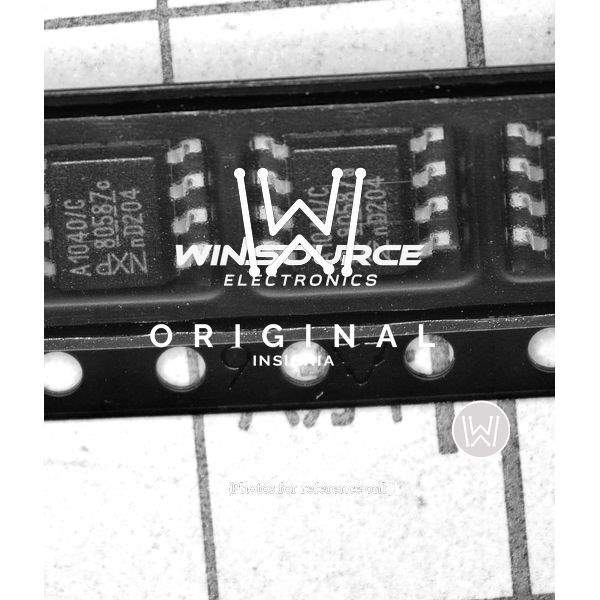

The TJA1040T/CM is a high-speed CAN (Controller Area Network) transceiver produced by NXP Semiconductors. It serves as an interface between a CAN protocol controller and the physical two-wire CAN bus. This transceiver is designed to provide reliable communication at data rates up to 1 megabit per second (Mbps), making it an ideal choice for automotive and industrial networking applications where robustness and high-speed data transfer are essential.

Key Features

• High-Speed CAN Interface: Supports CAN protocols with data transmission speeds of up to 1 Mbps.
• Differential Receiver: The TJA1040T/CM comes with a differential receiver that increases noise immunity and allows for reliable data transmission in harsh environments.
• Low Power Mode: Features a very low current standby mode with remote wake-up capability, which is crucial for power-sensitive applications.
• Thermal Protection: Integrated thermal protection disables the transmitter in case of excessive temperature, ensuring the device's longevity and reliability.
• Bus Pins Protection: The transceiver's bus pins are protected against transients in the automotive environment, which is in accordance with ISO 7637-3.

Applications

The versatility of the TJA1040T/CM makes it suitable for a wide range of applications, including:

• Automotive networks, such as body control modules, engine control units, and infotainment systems.
• Industrial automation systems where robust communication is required.
• Medical equipment that requires reliable data exchange.
• Networking equipment for building automation and control.

Technical Specifications

Some of the technical specifications of the TJA1040T/CM include:

• Supply voltage range: 4.75V to 5.25V
• Operating temperature range: -40°C to +125°C
• Package: SO8
• Compliant with the ISO 11898 standard

Overall, the TJA1040T/CM from NXP is a robust and efficient solution for high-speed CAN communication, providing both reliability and flexibility for a multitude of electronic networking applications.
