Same model may have multiple batches, images only for reference.

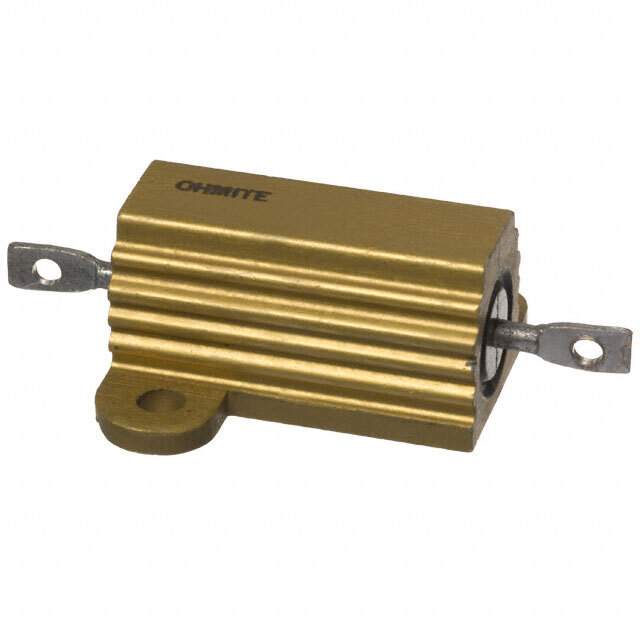

HS25 470R J Real Image
Same model may have multiple batches, images only for reference.

HS25 470R J

Part No HS25 470R J
Manufacturer Ohmite
Catalog Chassis Mount Resistors
Description RES CHAS MNT 470 OHM 5% 25W / 470 Ohms ±5% 25W Wirewound Chassis Mount Resistor
Datasheet
HS25 470R J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

HTSUS 8533.29.0000
ECCN EAR99
MSL Level Not Applicable
Standard Package 40
Package / Case Axial, Box
Lead Style Solder Lugs
Height - Seated (Max) 0.583" (14.80mm)
Size / Dimension 1.075" L x 0.559" W (27.30mm x 14.20mm)
Mounting Feature Flanges
Coating, Housing Type Aluminum
Temperature Coefficient ±100ppm/°C
Composition Wirewound
Power (Watts) 25W
Tolerance ±5%
Resistance 470 Ohms
Package Bulk
Series ARCOL, HS
Mfr Ohmite
Category Resistors - Chassis Mount Resistors
Win Source Part Number 1351042-HS25 470R J
Ultra Librarian 3D Model Ultra Librarian HS25 470R J CAD Model

Description

The Ohmite HS25 470R J is a wirewound resistor with a resistance of 470 Ohms and a power rating of 25W.

  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Mounting Type: Chassis Mount
  • Package/Case: Axial, Box
  • Coating: Aluminum
  • Mounting Feature: Flanges
