Same model may have multiple batches, images only for reference.

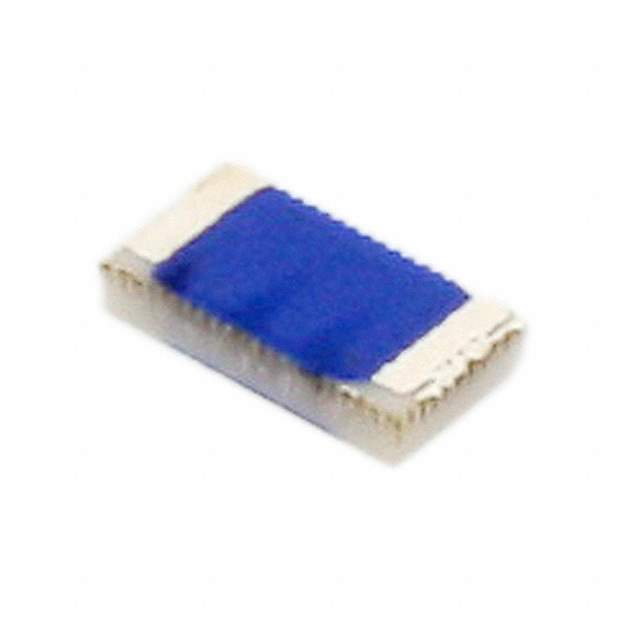

HVF1206T2504FE Real Image
Same model may have multiple batches, images only for reference.

HVF1206T2504FE

Part No HVF1206T2504FE
Manufacturer Ohmite
Catalog Chip Resistor - Surface Mount
Description RES SMD 2.5M OHM 1% 0.3W 1206 / 2.5 MOhms ±1% 0.3W Chip Resistor 1206 (3216 Metric) High Voltage, Moisture Resistant, Non-Magnetic Thick Film
Datasheet
HVF1206T2504FE Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Ohmite
Series HVF
Package Bulk
Product Status Obsolete
Resistance 2.5 MOhms
Tolerance ±1%
Power (Watts) 0.3W
Composition Thick Film
Features High Voltage, Moisture Resistant, Non-Magnetic
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.128" L x 0.063" W (3.25mm x 1.60mm)
Height - Seated (Max) 0.028" (0.71mm)
Number of Terminations 2
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1340265-HVF1206T2504FE
Ultra Librarian 3D Model Ultra Librarian HVF1206T2504FE CAD Model

Description

The Ohmite HVF1206T2504FE is a chip resistor that belongs to the HVF series.

  • Series: HVF
  • Manufacturer: Ohmite
  • Packaging: Bulk
  • Standard Package: 25
  • Tolerance: +/- 1%
  • Power Rating: 0.3W
  • Resistance: 2.5 MOhms
  • Temperature Range: -55°C to 200°C
  • Status: Obsolete
