Same model may have multiple batches, images only for reference.

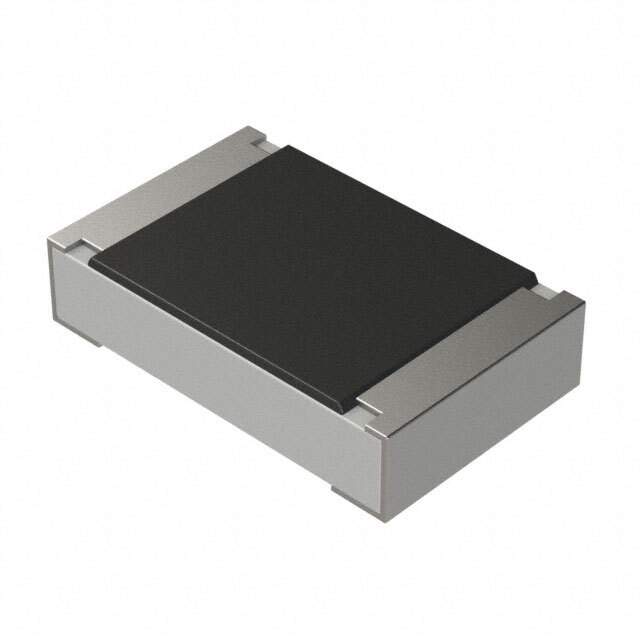

KDV08FR050ET Real Image
Same model may have multiple batches, images only for reference.

KDV08FR050ET

Part No KDV08FR050ET
Manufacturer Ohmite
Catalog Chip Resistor - Surface Mount
Description RES 0.05 OHM 1% 1/4W 0805 / 50 mOhms ±1% 0.25W, 1/4W Chip Resistor 0805 (2012 Metric) Current Sense Metal Film
Datasheet
KDV08FR050ET Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Ohmite
Series KDV
Package Tape & Reel
Resistance 50 mOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Metal Film
Features Current Sense
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Standard Package 5,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1342285-KDV08FR050ET
Ultra Librarian 3D Model Ultra Librarian KDV08FR050ET CAD Model

Description

The KDV08FR050ET is a surface mount chip resistor from the KDV series.

  • Series: KDV
  • Resistor Type: Metal Film
  • Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Height: 0.026" (0.65mm)
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.25W, 1/4W
  • Resistance: 50 mOhms
  • Package: Tape & Reel
  • Standard Package: 5,000
  • Temperature Range: -55°C ~ 155°C
  • Application: Current Sense
