Same model may have multiple batches, images only for reference.

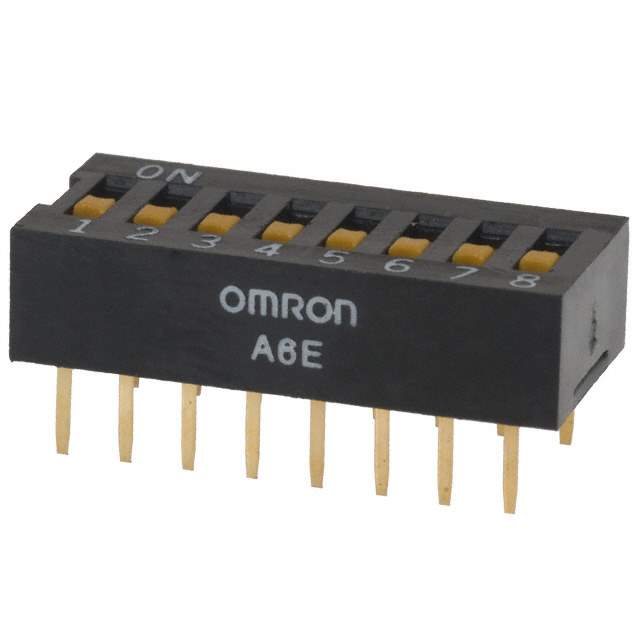

A6E-8101 Real Image
Same model may have multiple batches, images only for reference.

A6E-8101

Part No A6E-8101
Manufacturer Omron
Catalog DIP Switches
Description Switch DIP OFF ON SPST 8 Flush Slide 0.025A 24VDC PC Pins 1000Cycles 2.54mm Thru-Hole Tube / DIP Switch | SWITCH SLIDE DIP SPST 25MA 24V
Datasheet
A6E-8101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tube
Status Obsolete
Circuit SPST
Number of Positions 8
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.236" (6.00mm)
Mounting Style Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Features Sealed - Flux Protection
Temperature Range - Operating -20°C ~ 70°C
Length 0.861" (21.87mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Manufacturer Pack Quantity 21
MSL Level Not Applicable
Win Source Part Number 1134776-A6E-8101
Manufacturer Homepage www.omron.com/index3.html
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name A6E
Introduction Date May 20, 2001
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian A6E-8101 CAD Model

Description

The Omron Electronics Inc-EMC Div A6E-8101 is a SPST slide switch with 8 positions and a pitch of 0.100" (2.54mm), full.

  • Switch Type: SPST slide switch
  • Number of positions: 8
  • Pitch: 0.100" (2.54mm), full
  • Mounting style: through-hole
  • Sealing: sealed with flux protection
  • Contact finish: gold
  • Voltage rating: 24VDC
  • Height above board: 0.236" (6.00mm)
  • Length: 0.861" (21.87mm)
  • Circuit: SPST
  • Actuator type: slide (standard)
  • Electrical and Mechanical Life: 1,000 cycles
  • Actuator Level: flush, recessed
  • Washable: No
  • Family Name: A6E
  • Category: Switch
  • Operating Temperature: -20°C to 70°C
  • Status: obsolete
  • Popularity: High
  • Supply and Demand: Sufficient
