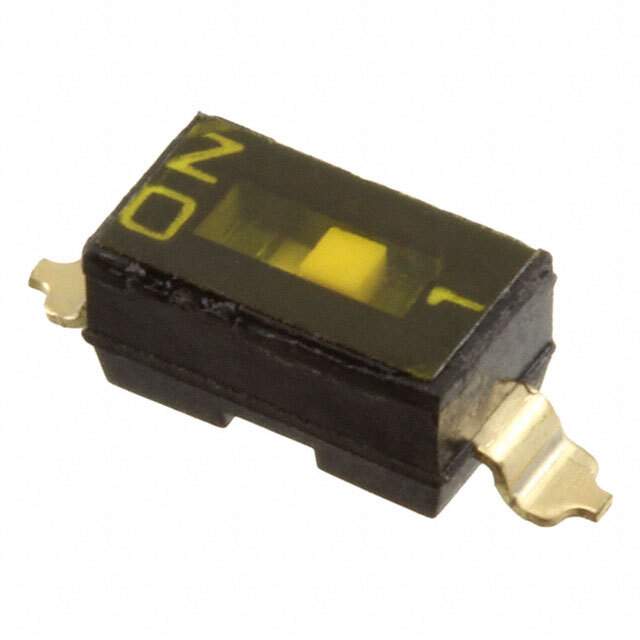

A6S-1101-H Real Image
Same model may have multiple batches, images only for reference.

A6S-1101-H

Part No A6S-1101-H
Manufacturer Omron
Catalog DIP Switches
Description DIP Switch | SWITCH SLIDE DIP SPST 25MA 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tube
Circuit SPST
Number of Positions 1
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.146" (3.70mm)
Mounting Style SMD
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -20°C ~ 70°C
Length 0.137" (3.48mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Manufacturer Pack Quantity 130
MSL Level 1 (Unlimited)
Win Source Part Number 1134780-A6S-1101-H
Manufacturer Homepage www.omron.com/index3.html
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian A6S-1101-H CAD Model

Description

The Omron Electronics Inc-EMC Div slide switch is a compact and reliable switch that is commonly used in electronic circuits.

  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Circuit: SPST
  • Actuator: Slide, flush or recessed
  • Mechanical Life: 1000 cycles
  • Electrical Life: 1000 cycles
  • Mounting: Surface mount
  • Termination: Gull wing
  • Washable: No
  • Temperature Range: -20°C to 70°C
  • Packaging: Tube
  • Height Above Board: 0.146" (3.70mm)
  • Length: 0.137" (3.48mm)
