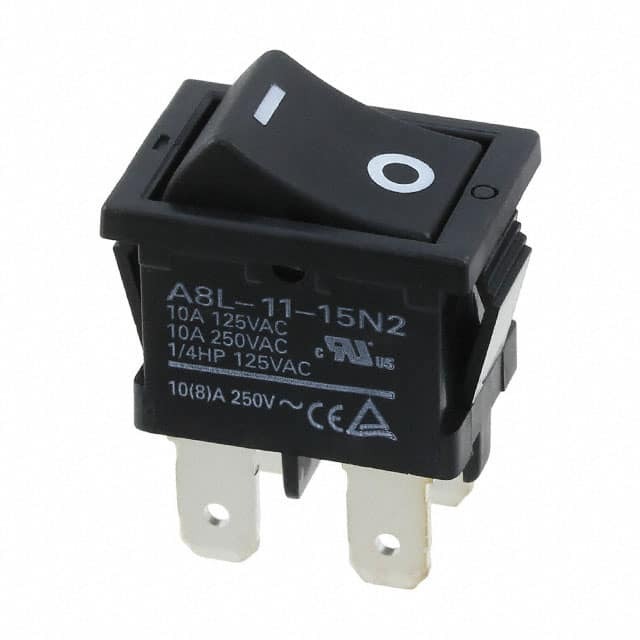

A8L-11-15N2
Same model may have multiple batches, images only for reference.

A8L-11-15N2

Part No A8L-11-15N2
Manufacturer Omron
Catalog Rocker Switches
Description SWITCH ROCKER SPST 10A 125V
Datasheet
A8L-11-15N2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Rocker Switches
Mfr Omron
Series A8L
Package Bulk
Product Status Active
Mounting Type Panel Mount, Snap-In
Circuit SPST
Switch Function On-Off
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking O I
Termination Style Quick Connect - 0.187" (4.7mm)
Panel Cutout Dimensions Rectangular - 19.20mm x 12.90mm
Temperature Range - Operating -20°C ~ 55°C
Mechanical Life 50,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number A8L
Standard Package 300 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 849031-A8L-11-15N2
Ultra Librarian 3D Model Ultra Librarian A8L-11-15N2 CAD Model

Description

The A8L-11-15N2 is a rocker switch from Omron's A8L series. It features a quick connect termination style with a 0.187" (4.7mm) size.

  • Series: A8L
  • Termination Style: Quick connect
  • Termination Size: 0.187" (4.7mm)
  • Voltage Rating: 125 V AC
  • Current Rating: 10A
  • Circuit: Single-pole single-throw (SPST)
  • Switch Function: On-off
  • Actuator Type: Concave (curved)
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 50,000 cycles
  • Mounting: Panel mountable
  • Panel Cutout Dimensions: Rectangular - 19.20mm x 12.90mm
  • Operating Temperature Range: -20°C to 55°C
