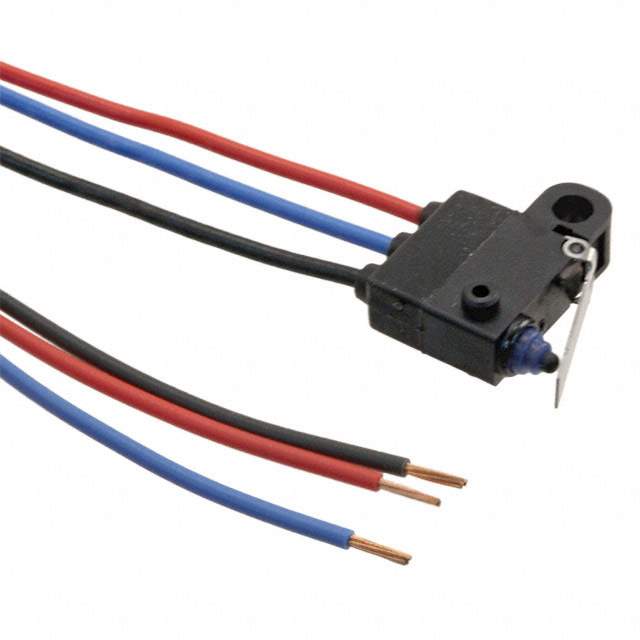

D2HW-C213M Real Image
Same model may have multiple batches, images only for reference.

D2HW-C213M

Part No D2HW-C213M
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP SPST-NO 100MA 125V  /  Switch SPST-NO Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2HW
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 100mA (AC), 2A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 12 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 76gf
Release Force 7.138gf
Differential Travel 0.020" (0.5mm)
Overtravel 0.062" (1.6mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.295" (7.5mm)
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2HW
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Other Names D2HWC213MBYOMR,D2HW-C213M BY OMR,D2HWC213M
Standard Package 20
Win Source Part Number 982791-D2HW-C213M
Ultra Librarian 3D Model Ultra Librarian D2HW-C213M CAD Model

Description

The Omron D2HW-C213M is a limit switch that comes in a bulk package with a standard package of 20.

  • Win Source Part Number: 982791-D2HW-C213M
  • Termination Style: wire leads
  • Mounting: chassis mounting
  • Ingress Protection: IP67
  • Voltage Rating AC: 125V
  • Voltage Rating DC: 12V
  • Circuit: SPST-NO
  • Switch Function: off-mom
  • Actuator Type: lever, straight
  • Operating Force: 76gf
  • ECCN: EAR99
  • HTSUS: 8536.50.7000
  • Current Rating AC: 100mA (AC)
  • Current Rating DC: 2A (DC)
  • Operating Temperature: -40°C to 85°C
