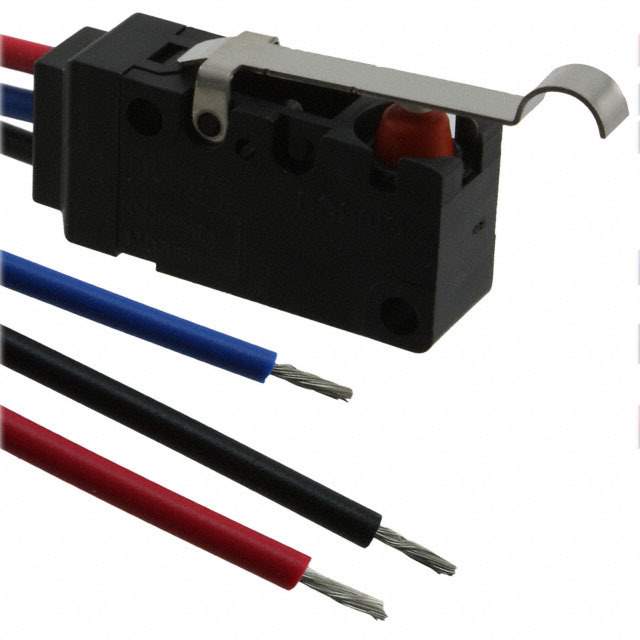

D2VW-5L3-1MS Real Image
Same model may have multiple batches, images only for reference.

D2VW-5L3-1MS

Part No D2VW-5L3-1MS
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V  /  Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2VW
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 120gf
Release Force 15gf
Pretravel 0.157" (4.0mm)
Differential Travel 0.031" (0.8mm)
Overtravel 0.062" (1.6mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.738" (18.7mm)
Electrical Life 100,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number D2VW
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names D2VW-5L3-1MS-ND,D2VW5L31MS,2266-D2VW-5L3-1MS,SW1172
Standard Package 10
Win Source Part Number 1032159-D2VW-5L3-1MS
Ultra Librarian 3D Model Ultra Librarian D2VW-5L3-1MS CAD Model

Description

The D2VW-5L3-1MS is a limit switch manufactured by Omron Electronics Inc-EMC Div.

  • Circuit Configuration: SPDT
  • Switch Function: On-Mom
  • Operating Force: 120gf
  • Release Force: 15gf
  • Differential Travel: 0.031" (0.8mm)
  • Overtravel: 0.062" (1.6mm)
  • Applications: Machine tools, packaging machines, and material handling equipment
