D3SH-A0R Omron
Same model may have multiple batches, images only for reference.

D3SH-A0R

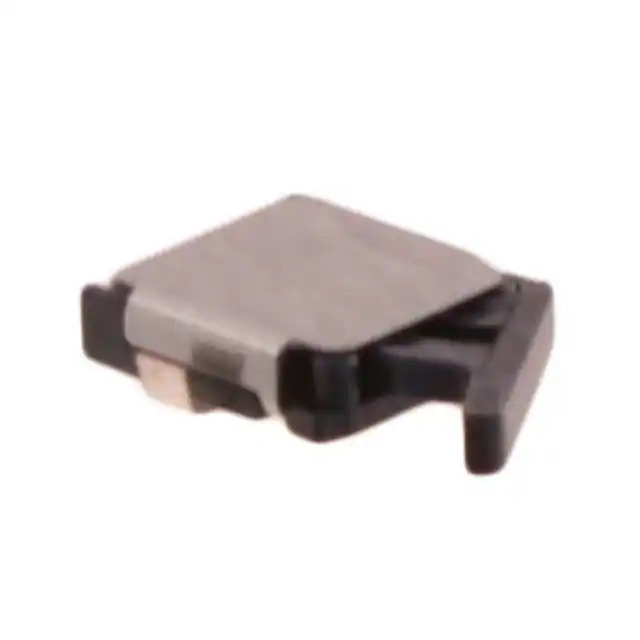

Part No D3SH-A0R
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH DETECTOR SPST-NO 1MA 5V / Switch SPST-NO Surface Mount, Right Angle
Datasheet
D3SH-A0R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D3SH
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 1mA (DC)
Voltage Rating - DC 5 V
Actuator Type Angled Toggle (Detector)
Mounting Type Surface Mount, Right Angle
Termination Style SMD (SMT) Tab
Ingress Protection -
Features Right Operating Lever
Operating Force 31gf
Release Force -
Operating Position 0.197" (5.0mm)
Pretravel -
Differential Travel -
Overtravel -
Temperature Range - Operating -25°C ~ 85°C
Electrical Life 100,000 Cycles
Mechanical Life 150,000 Cycles
Base Product Number D3SH
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055
Win Source Part Number 1376164-D3SH-A0R
Ultra Librarian 3D Model Ultra Librarian D3SH-A0R CAD Model

Description

The D3SH-A0R is a limit switch from Omron Electronics Inc-EMC Div's D3SH series.

  • Temperature Range: -25°C to 85°C
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Voltage Rating: 5V DC
  • Current Rating: 1mA
  • Actuator: Angled Toggle
  • Termination: Surface Mount, Right-Angle Tabs
  • Mechanical Life: 150,000 cycles
  • Electrical Life: 100,000 cycles
  • Series: D3SH
  • Manufacturer: Omron Electronics Inc-EMC Div
