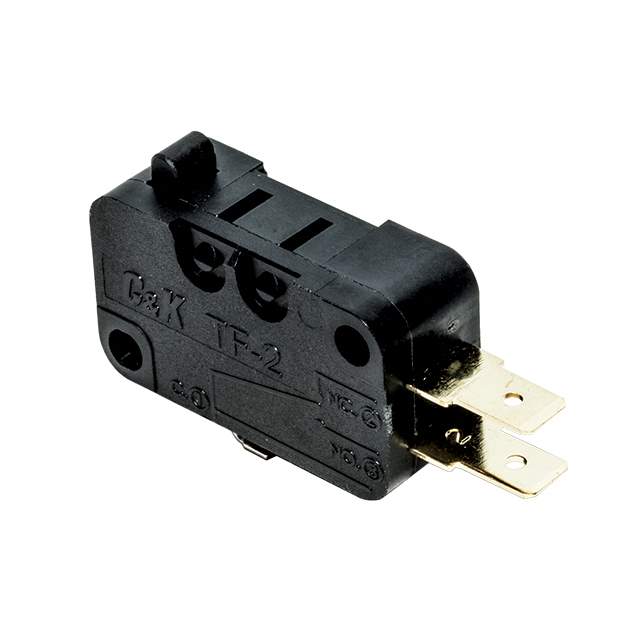

TF2CFH8ST1040C Real Image
Same model may have multiple batches, images only for reference.

TF2CFH8ST1040C

Part No TF2CFH8ST1040C
Manufacturer C&K Components
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 6A 125V  /  Switch SPDT Chassis Mount
Datasheet
TF2CFH8ST1040C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr C&K
Series TF2
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 6A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.187" (4.7mm)
Operating Force 45gf
Release Force 6.000gf
Pretravel 0.110" (2.8mm)
Differential Travel 0.020" (0.5mm)
Overtravel 0.025" (0.6mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.602" (15.3mm)
Electrical Life 10,000 Cycles
Base Product Number TF2CFH8
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Other Names 2266-TF2CFH8ST1040C,CKN10553,*TF2CFH8ST1040C
Standard Package 1
Win Source Part Number 1185880-TF2CFH8ST1040C
Ultra Librarian 3D Model Ultra Librarian TF2CFH8ST1040C CAD Model

Description

The C&K TF2CFH8ST1040C is a SPDT on-mom lever straight limit switch with a circuit rating of 6A (AC) and a voltage rating of 125V AC.

  • Switch Type: SPDT On-Mom Lever Straight Limit Switch
  • Circuit Rating: 6A (AC)
  • Voltage Rating: 125V AC
  • Termination Style: Quick-Connect 0.187" (4.7mm)
  • Operating Force: 45gf
  • Mounting Type: Chassis Mount
  • Differential Travel: 0.020" (0.5mm)
  • Overtravel: 0.025" (0.6mm)
  • Minimum Operating Temperature: -40°C
  • Maximum Operating Temperature: 85°C
  • Electrical Life: 10,000 cycles
  • Packaging: Bulk
