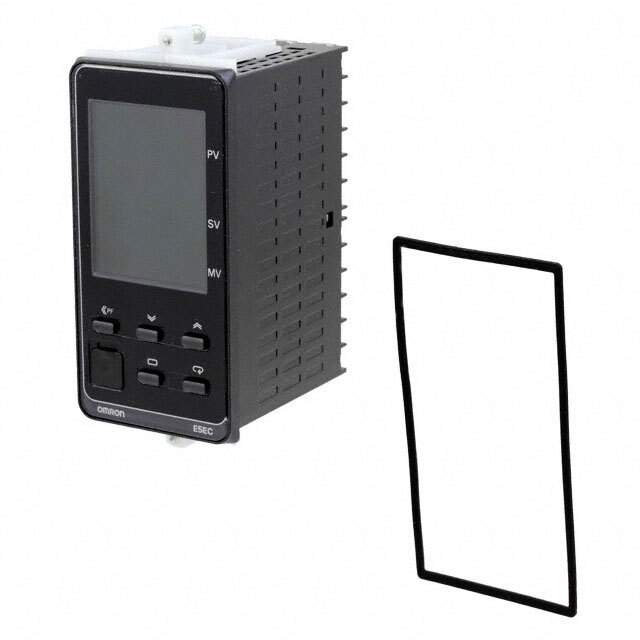

E5EC-RR4A5M-000 Real Image
Same model may have multiple batches, images only for reference.

E5EC-RR4A5M-000

Part No E5EC-RR4A5M-000
Manufacturer Omron
Catalog Controllers - Process, Temperature
Description CONTROL TEMP/PROCESS 100-240V  /  Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) 100 ~ 240VAC Panel Mount
Datasheet
E5EC-RR4A5M-000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Controllers - Process, Temperature
Mfr Omron Automation and Safety
Series E5EC
Package Box
Type Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)
Input Range -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC
Output Type Relay (6)
Control Method On/Off, Proportional (PID)
Number Of Characters Per Row 4, 4, 4
Display Type LCD - Tri Color Characters, Backlight
Display Characters - Height 0.710" (18.00mm), 0.433" (11.00mm), 0.307" (7.80mm)
Voltage - Supply 100 ~ 240VAC
Panel Cutout Dimensions Rectangular - 92.00mm x 45.00mm
Mounting Type Panel Mount
Termination Style Screw Terminal
Ingress Protection IP66 - Dust Tight, Water Resistant
Temperature Range - Operating -10°C ~ 55°C
Weight 0.463 lb (210.01 g)
Base Product Number E5EC-RR
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9032.10.0090
Other Names E5EC-RR4A5M-000-ND,E5ECRR4A5M000,Z3788
Standard Package 1
Win Source Part Number 1000196-E5EC-RR4A5M-000
Ultra Librarian 3D Model Ultra Librarian E5EC-RR4A5M-000 CAD Model

Description

The E5EC series of process and temperature controllers from Omron Automation and Safety are designed for use in industrial automation and control applications.

  • Model: 1000196-E5EC-RR4A5M-000
  • Type: Process and temperature controller
  • Input Range: RTD (resistance temperature detector) type input range of -200°C to 2300°C, 0 to 20mA, and 0 to 10VDC
  • Output Type: Relay (6)
  • Control Methods: On/off or proportional (PID) control
  • Display: Tri-color LCD display with backlight
  • Characters Per Row: Up to 4 characters
  • Voltage Supply Rating: 100 to 240VAC
  • Mounting: Panel mounted
  • Ingress Protection: IP66, making it dust tight and water-resistant
  • Package: Box with a standard package of 1 unit
