Same model may have multiple batches, images only for reference.

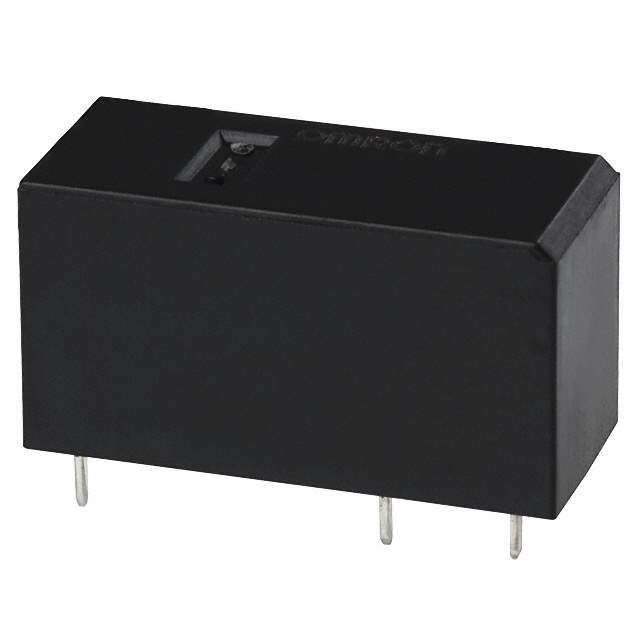

G2RL-14-DC12 Real Image
Same model may have multiple batches, images only for reference.

G2RL-14-DC12

Part No G2RL-14-DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description Electromechanical Relay 12VDC 360Ohm 12A SPDT (29x12.7x15.7)mm THT Power Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 85 °C
Approvals CSA, UL, VDE
Coil Current 33.3 mA
Coil Power 400 mW
Coil Resistance 360 Ω
Coil Type Non-Latching
Coil Voltage (DC) 12 V
Contact Current Rating 12 A
Contact Material Cadmium, Silver, Tin
Contact Resistance 100 mΩ
Current Rating 12 A
Depth 12.7 mm
Height 15.7 mm
Lead Free Lead Free
Length 29 mm
Max Current Rating 12 A
Max Operating Temperature 85 °C
Max Voltage Rating (AC) 440 V
Max Voltage Rating (DC) 300 V
Min Operating Temperature -40 °C
Mount PCB, Through Hole
Number of Contacts 1
Number of Pins 5
Operate Time 15 ms
Packaging Bulk
Power Consumption 400 mW
Power Rating 400 mW
Radiation Hardening No
Relay Type General Purpose
Release Time 5 ms
RoHS Compliant
Switching Current 12 A
Termination PC Pin
Throw Configuration SPDT
Voltage Rating (AC) 250 V
Voltage Rating (DC) 24 V
Weight 12 g
Width 12.7 mm
Win Source Part Number 1174161-G2RL-14-DC12
Categories Power Relays,Over 2 Amps
Manufacturer Omron
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian G2RL-14-DC12 CAD Model

Description

The Omron Relay is a medium popularity electronic component in the market.

  • Manufacturer: Omron
  • Part Number: 1174161-G2RL-14-DC12
  • Type: General-purpose non-latching relay
  • Coil Resistance: 360 Ω
  • Coil Current: 33.3 mA
  • Contact Material: Cadmium, Silver, and Tin
  • Contact Resistance: 100 mΩ
  • Approvals: CSA, UL, and VDE
  • Status: Limited supply and demand status
