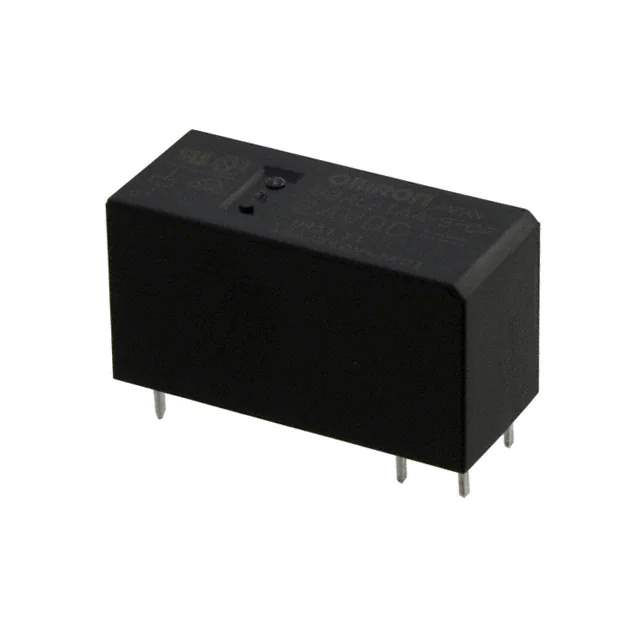

G2RL-1A-E DC24 Real Image
Same model may have multiple batches, images only for reference.

G2RL-1A-E DC24

Part No G2RL-1A-E DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron
Series G2RL
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 440VAC, 300VDC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Relay Type General Purpose
Coil Resistance 1.44 kOhms
Base Product Number G2R
Standard Package 20 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 843328-G2RL-1A-E DC24
Ultra Librarian 3D Model Ultra Librarian G2RL-1A-E DC24 CAD Model

Description

The G2RL-1A-E DC24 is a general-purpose power relay designed for various applications. It features a SPST-NO contact form, with 1 Form A contact configuration. The contact material is made of silver alloy, cadmium-free, ensuring reliable and efficient performance.

  • Contact Form: SPST-NO
  • Contact Configuration: 1 Form A
  • Contact Material: Silver Alloy, Cadmium-Free
  • Coil Resistance: 1.44 kOhms
  • Coil Current: 16.7 mA
  • Coil Voltage: 24VDC
  • Switching Voltage: 440VAC and 300VDC maximum
  • Operate Time: 15 ms
  • Release Time: 5 ms
  • Sealed: Flux Protection
  • Mounting: Through-Hole
  • Temperature Range: -40°C to 85°C
  • Series: G2RL
  • Standard Package: 20 pcs
  • Manufacturer: Omron
