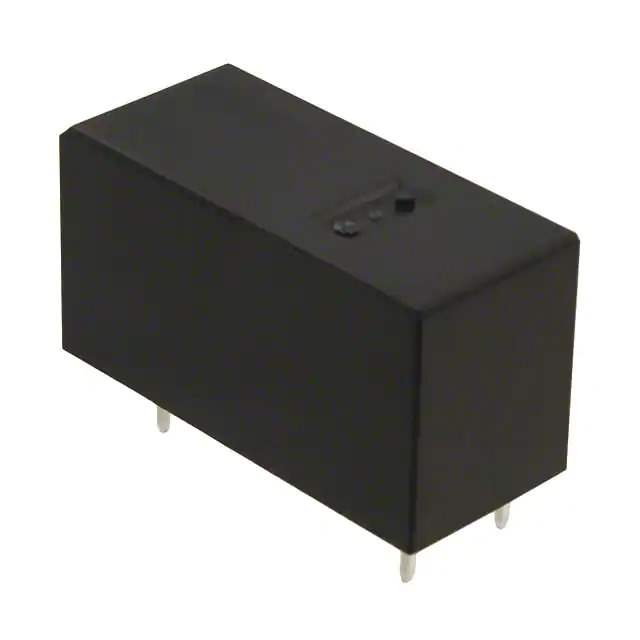

G2RL-1A4-E DC48 Real Image
Same model may have multiple batches, images only for reference.

G2RL-1A4-E DC48

Part No G2RL-1A4-E DC48
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 48V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron
Series G2RL
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 48VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 440VAC, 300VDC - Max
Coil Current 9 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 33.6 VDC
Must Release Voltage 4.8 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Relay Type General Purpose
Coil Resistance 5.36 kOhms
Standard Package 20 pcs
Moisture Sensitivity Level (MSL) Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 876519-G2RL-1A4-E DC48
Ultra Librarian 3D Model Ultra Librarian G2RL-1A4-E DC48 CAD Model

Description

The G2RL-1A4-E DC48 is a power relay from Omron. It is part of the G2RL series and features a SPST-NO (1 Form A) contact form.

  • Coil Voltage: 48VDC
  • Coil Resistance: 5.36 kOhms
  • Contact Rating: 16 A
  • Switching Voltage: 440VAC and 300VDC
  • Application: General-purpose relay
  • Mounting Type: Through-hole
  • Operating Temperature Range: -40°C to 85°C
  • Relay Type: Sealed and fully protected
  • Product Status: Obsolete
