Same model may have multiple batches, images only for reference.

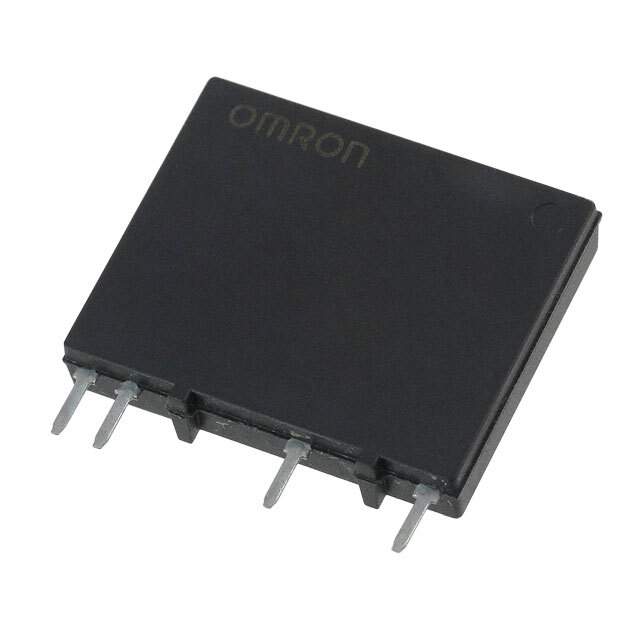

G3MC-101P DC24 Real Image
Same model may have multiple batches, images only for reference.

G3MC-101P DC24

Part No G3MC-101P DC24
Manufacturer Omron
Catalog Solid State Relays
Description RELAY SSR 1A 24VDC SIP PC MNT
Datasheet
G3MC-101P DC24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Automation and Safety
Series G3MC
Packaging Bulk
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Load Current 1A
Voltage - Input 19.2 ~ 28.8VDC
Voltage - Load 75 ~ 132 V
Mounting Style Through Hole
Termination Style PC Pin
Package 4-SIP
Manufacturer Package 4-SIP
Relay Type Relay
Win Source Part Number 787644-G3MC-101P DC24
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian G3MC-101P DC24 CAD Model

Description

The Omron G3MC-101P DC24 relay is a 4-SIP package relay with a circuit of SPST-NO (1 Form A). It has a load current of 1A and a voltage load of 75~132V.

  • Circuit: SPST-NO (1 Form A)
  • Load Current: 1A
  • Voltage Load: 75~132V
  • Voltage Input: 19.2~28.8VDC
  • Output Type: AC, zero cross
  • Operating Temperature Range: -30°C to 85°C
  • Mounting: Through Hole
  • Termination Style: PC Pin
