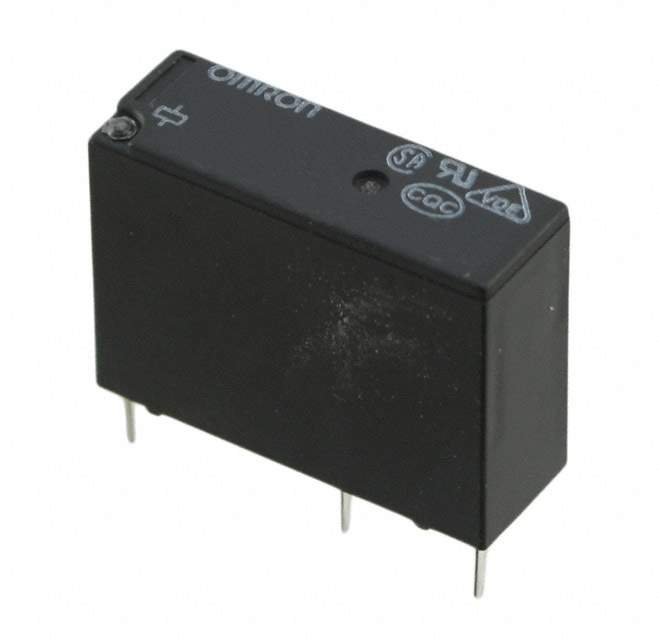

G5NB-1A DC24 Real Image
Same model may have multiple batches, images only for reference.

G5NB-1A DC24

Part No G5NB-1A DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 3A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5NB
Package Bulk
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 3 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 8.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Relay Type General Purpose
Coil Resistance 2.88 kOhms
Base Product Number G5NB
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names G5NB1ADC24BYOMZA-ND,G5NB5003A,G5NB1ADC24,G5NB-1A DC24BYOMZ,G5NB1ADC24BYOMZNA-ND,G5NB1ADC24BYOMZA,G5NB6005C,Z1676,G5NB1ADC24BYOMZ,G5NB1ADC24BYOMZNA,G5NB-1A DC24 BY OMZ (N) (A),G5NB1A24DC,G5NB-1A-DC24,G5NB1ADC24BYOMB
Standard Package 500
Win Source Part Number 1209192-G5NB-1A DC24
Ultra Librarian 3D Model Ultra Librarian G5NB-1A DC24 CAD Model

Description

The Omron G5NB-1A DC24 is a SPST-NO (1 Form A) power relay with a contact rating of 3 A and a switching voltage of 250VAC, 30VDC - Max.

  • Contact Configuration: SPST-NO (1 Form A)
  • Contact Rating: 3 A
  • Switching Voltage: 250VAC, 30VDC - Max
  • Coil Voltage: 24VDC
  • Coil Resistance: 2.88 kOhms
  • Operating Temperature: -40°C to 70°C
  • Series: G5NB
  • Coil Type: Non-Latching
  • Operate Time: 10 ms
  • Mounting Type: Through Hole
  • Package: Bulk
  • Manufacturer: Omron
