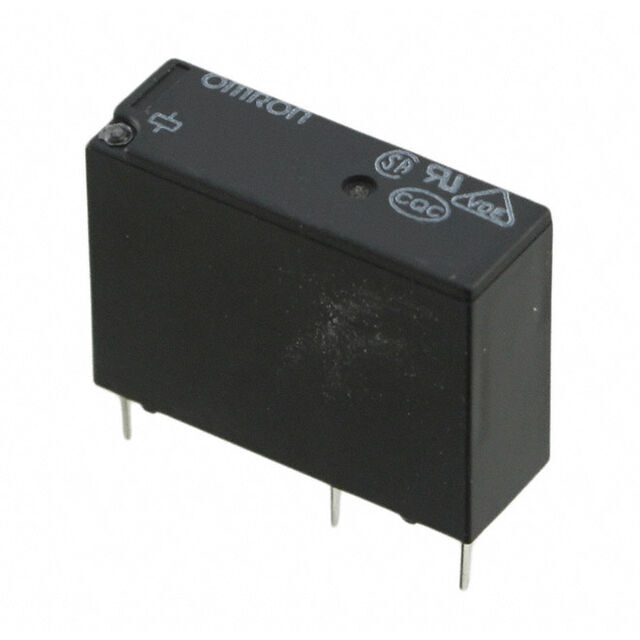

G5NB-1A-E-HA DC12 (N)(A) Omron – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

G5NB-1A-E-HA DC12 (N)(A)

Part No G5NB-1A-E-HA DC12 (N)(A)
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Omron Electronics Inc-EMC Div
Series G5NB
Packaging Bulk
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Load - Max Switching 1250VA, 150W
Coil Current 16.7 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class B
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Approval Agency CQC, CSA, UR, VDE
Relay Type General Purpose
Coil Resistance 720 Ohms
Base Product Number G5NB-1A
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1477654-G5NB-1A-E-HA DC12 (N)(A)
Ultra Librarian 3D Model Ultra Librarian G5NB-1A-E-HA DC12 (N)(A) CAD Model
