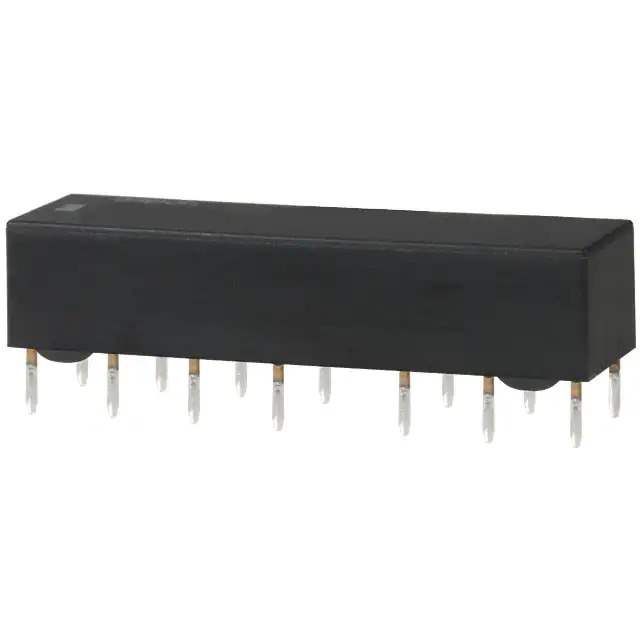

Same model may have multiple batches, images only for reference.

G6A-434P-ST20-US-DC12

Name: G6A-434P-ST20-US-DC12
Brand: Omron
SKU: 919469
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	G6A-434P-ST20-US-DC12
Manufacturer	Omron
Catalog	Signal Relays, Up to 2 Amps
Description	RELAY GEN PURPOSE 4PDT 1A 12VDC / General Purpose Relay 4PDT (4 Form C) Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Relays - Signal Relays, Up to 2 Amps
Mfr	Omron
Series	G6A
Package	Tube
Product Status	Obsolete
Mounting Type	Through Hole
Coil Voltage	12VDC
Contact Form	4PDT (4 Form C)
Contact Rating (Current)	1 A
Switching Voltage	250VAC, 220VDC - Max
Coil Current	16.7 mA
Coil Type	Non Latching
Termination Style	PC Pin
Must Operate Voltage	8.4 VDC
Must Release Voltage	1.2 VDC
Operate Time	7 ms
Release Time	5 ms
Temperature Range - Operating	-40°C ~ 70°C
Contact Material	Silver Palladium (AgPd), Gold (Au)
Relay Type	General Purpose
Coil Resistance	720 Ohms
Standard Package	10 pcs
Moisture Sensitivity Level (MSL)	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.41.0020
Win Source Part Number	919469-G6A-434P-ST20-US-DC12
Ultra Librarian 3D Model	Ultra Librarian G6A-434P-ST20-US-DC12 CAD Model

Alternative Products

Description

The G6A-434P-ST20-US-DC12 is a signal relay from Omron.

Contact Form: 4PDT
Contact Material: Silver Palladium (AgPd) and Gold (Au)
Coil Voltage: 12VDC
Coil Resistance: 720 Ohms
Maximum Switching Voltage: 250VAC and 220VDC
Operate Time: 7 ms
Release Time: 5 ms
Mounting: Through-Hole
Temperature Range: -40°C to 70°C
Status: Obsolete
