Same model may have multiple batches, images only for reference.

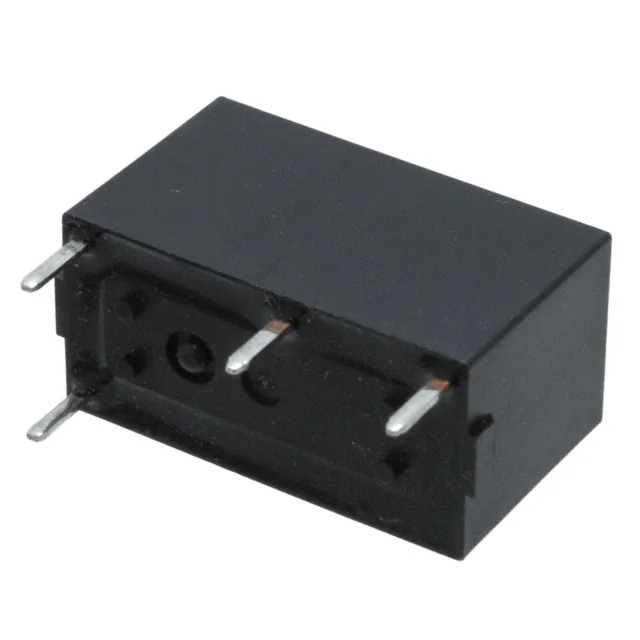

G6B-1174P-US-DC24 Omron
Same model may have multiple batches, images only for reference.

G6B-1174P-US-DC24

Part No G6B-1174P-US-DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 8A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G6B
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 8 A
Switching Voltage 380VAC, 125VDC - Max
Coil Current 8.3 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation -
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -25°C ~ 70°C
Contact Material Silver Alloy, Cadmium Free
Relay Type General Purpose
Coil Resistance 2.88 kOhms
Base Product Number G6B
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1373408-G6B-1174P-US-DC24
Ultra Librarian 3D Model Ultra Librarian G6B-1174P-US-DC24 CAD Model

Description

The Omron Electronics Inc-EMC Div G6B-1174P-US-DC24 is a power relay from the G6B series.

  • Contact Arrangement: SPST-NO (1 Form A)
  • Contact Rating: 8A
  • Coil Voltage: 24VDC
  • Coil Current: 8.3mA
  • Operating Temperature: -25°C to 70°C
  • Switching Voltage: 380VAC, 125VDC maximum
  • Mounting Type: Through Hole
  • Termination: PC Pin
  • Seal: Fully Sealed
  • Mechanical Life: 10,000,000 cycles
  • Application: General-purpose power applications
  • Contact Material: Silver Alloy
