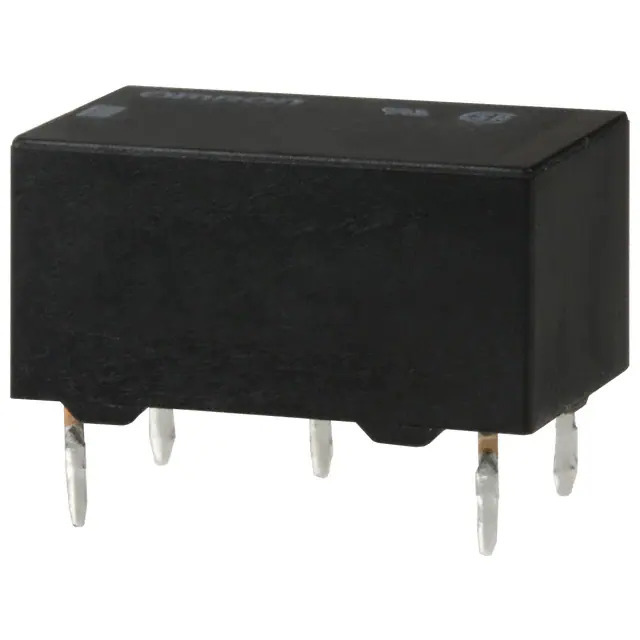

G6E-134P-US DC5 Omron
Same model may have multiple batches, images only for reference.

G6E-134P-US DC5

Part No G6E-134P-US DC5
Manufacturer Omron
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE SPDT 2A 5VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G6E
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 2 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 40 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation -
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 5 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver (Ag), Gold (Au)
Relay Type General Purpose
Coil Resistance 125 Ohms
Base Product Number G6E
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1373494-G6E-134P-US DC5
Ultra Librarian 3D Model Ultra Librarian G6E-134P-US DC5 CAD Model

Description

The G6E-134P-US DC5 is a signal relay from Omron Electronics Inc-EMC Div.

  • Series: G6E
  • Temperature Range: -40°C to 70°C
  • Contact Form: SPDT (1 Form C)
  • Contact Rating: 2A
  • Switching Voltage: 250VAC and 220VDC (Maximum)
  • Coil Voltage: 5VDC
  • Coil Current: 40mA
  • Mounting Type: Through Hole
  • Rating: Sealed
