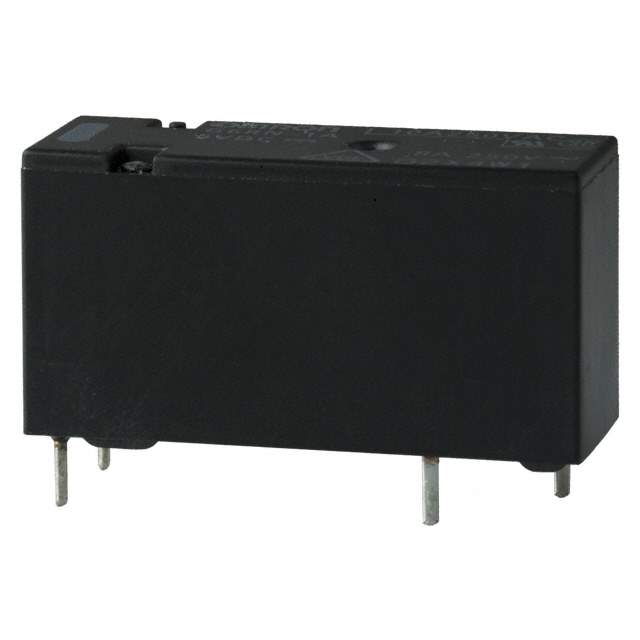

G6RN-1 DC5 Real Image
Same model may have multiple batches, images only for reference.

G6RN-1 DC5

Part No G6RN-1 DC5
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 8A 5V / General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G6RN
Package Bulk
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 8 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 44 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 114 Ohms
Base Product Number G6RN
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Other Names G6RN1DC5,G6HK1002M,Z987,Q7900340,G6RN15DC,G6RN-1-DC5
Standard Package 400
Win Source Part Number 985186-G6RN-1 DC5
Ultra Librarian 3D Model Ultra Librarian G6RN-1 DC5 CAD Model

Description

The G6RN series power relay is a high-quality component offered by Omron Electronics Inc-EMC Div. It is a SPDT (1 Form C) contact form relay with a silver alloy contact material.

  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver Alloy
  • Coil Voltage: 5VDC
  • Coil Resistance: 114 Ohms
  • Operate Time: 15 ms
  • Release Time: 5 ms
  • Contact Rating: 8 A
  • Switching Voltage: 250VAC, 30VDC - Max
  • Seal: Fully Sealed
  • Must Operate Voltage: 3.5 VDC
  • Must Release Voltage: 0.5 VDC
  • Temperature Range: -40°C to 85°C
  • Packaging: Bulk
  • Standard Package: 400
