Same model may have multiple batches, images only for reference.

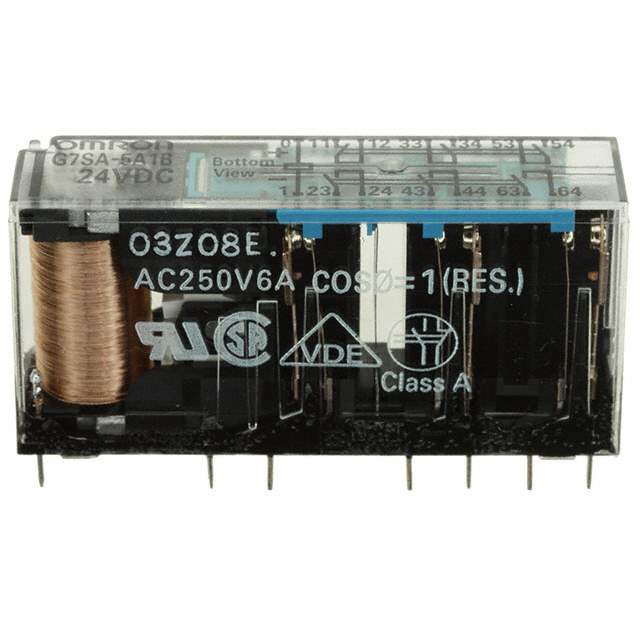

G7SA-5A1B DC24 Real Image
Same model may have multiple batches, images only for reference.

G7SA-5A1B DC24

Part No G7SA-5A1B DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description Electromechanical Relay 24VDC 1.6KOhm 6A 5PST-NO/SPST-NC (50x13x24)mm THT Safety Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CSA, UL, VDE
Coil Current 20.8 mA
Coil Power 500 mW
Coil Resistance 1.15 kΩ
Coil Type Non-Latching
Coil Voltage (DC) 24 V
Contact Current Rating 6 A
Current Rating 6 A
Height 24 mm
Max Current Rating 6 A
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 250 V
Max Voltage Rating (DC) 125 V
Min Operating Temperature -40 °C
Mount PCB, Socketable, Through Hole
Number of Pins 6
Number of Poles 6
Operate Time 20 ms
Packaging Bulk
REACH SVHC Unknown
Relay Type Safety
Release Time 10 ms
RoHS Compliant
Termination Plug, Solder
Throw Configuration 5PST, 6PST, SPST
Voltage Rating (AC) 380 V
Weight 25 g
Width 13 mm
Win Source Part Number 1060385-G7SA-5A1B DC24
Categories Power Relays,Over 2 Amps
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian G7SA-5A1B DC24 CAD Model

Description

The G7SA-5A1B DC24 by Omron is a safety relay that operates within a temperature range of -40 °C to 85 °C.

  • Contact Current Rating: 6 A
  • Coil Resistance: 1.15 kΩ
  • Coil Current: 20.8 mA
  • Coil Power: 500 mW
  • Packaging: bulk
  • Supply and Demand Status: limited supply and demand
  • Popularity: low popularity
