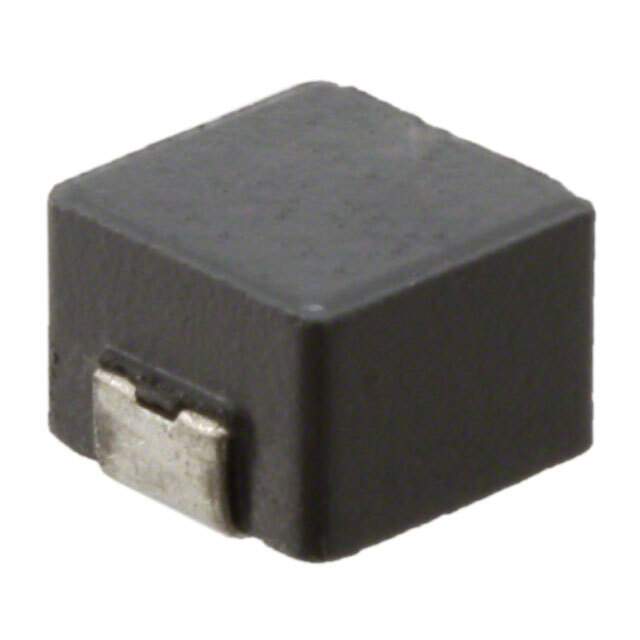

The 74437349470 is a power inductor from Wurth Electronics Inc, designed for high-current applications in power supplies and DC-DC converters. It is part of the WE-HCF series, known for its flat wire construction and high saturation current.

Applications

• Buck converters in point-of-load (POL) regulators.
• Boost converters in LED lighting.
• SEPIC converters in battery chargers.
• Filtering in high-current power supplies.
• Automotive electronics.

Features

• Flat wire construction for low DC resistance.
• High saturation current.
• Shielded construction for low EMI.
• RoHS compliant.
• Operating temperature range: -40°C to +125°C

Benefits

• Improved efficiency in power conversion due to low DC resistance.
• Stable inductance under high current conditions.
• Reduced electromagnetic interference with surrounding circuits.
• Compliance with environmental regulations.
• Suitable for harsh environments.

Additional Details

The 74437349470 inductor utilizes a ferrite core material and a flat wire winding to minimize DC resistance and maximize current handling capability. The shielded construction reduces electromagnetic interference, making it suitable for use in sensitive electronic equipment. The specific inductance value, saturation current, and DC resistance can be found in the manufacturer's datasheet. It's commonly used in high-current power supplies, DC-DC converters, and automotive electronics where efficiency and reliability are critical. The flat wire construction also improves thermal performance, allowing the inductor to operate at higher temperatures without overheating. Proper soldering techniques should be used when mounting the inductor to ensure a reliable electrical connection.
