Same model may have multiple batches, images only for reference.

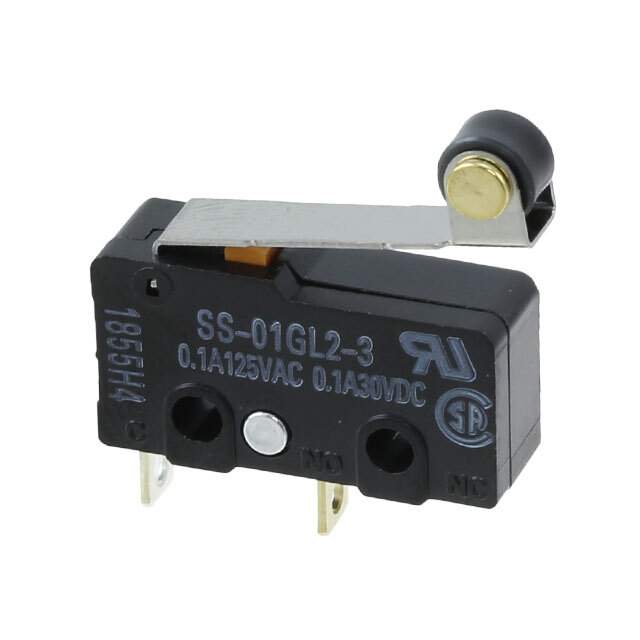

SS-01GL2-3 Real Image
Same model may have multiple batches, images only for reference.

SS-01GL2-3

Part No SS-01GL2-3
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP SPST-NO 100MA 125V  /  Switch SPST-NO Chassis Mount
Datasheet
SS-01GL2-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 50gf
Release Force 6.118gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.571" (14.5mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01GL
Other Names SS01GL23,SS-01GL2-3,Z4549,-SS-01GL2-3,SS01GL23BYOMI
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233524-SS-01GL2-3
Ultra Librarian 3D Model Ultra Librarian SS-01GL2-3 CAD Model

Description

The 1233524-SS-01GL2-3 switch is a limit switch from Omron with a solder lug termination style.

  • Ingress Protection: IP40
  • Current Rating: 100mA (AC/DC)
  • Standard Package: 500
  • ECCN: EAR99 compliant
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Lever, Roller
  • Operating Force: 50gf
  • Mechanical Life: 30,000,000 cycles
