Same model may have multiple batches, images only for reference.

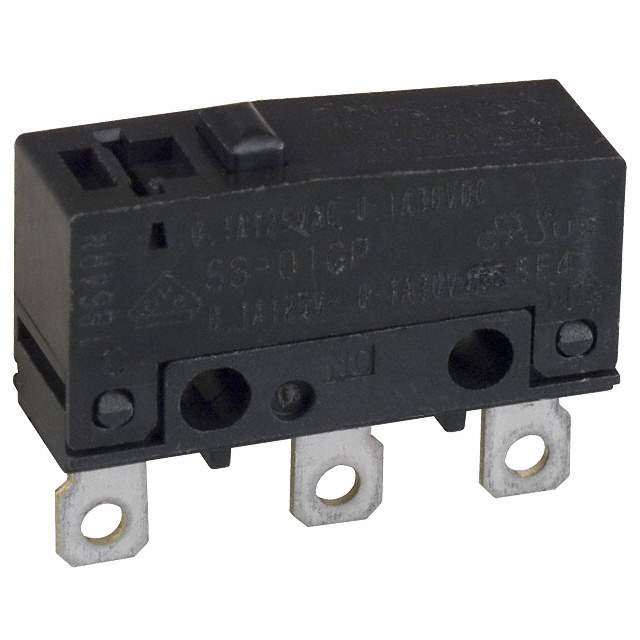

SS-01GP Real Image
Same model may have multiple batches, images only for reference.

SS-01GP

Part No SS-01GP
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V  /  Switch SPDT Chassis Mount
Datasheet
SS-01GP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS-P
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 153gf
Release Force 20gf
Pretravel 0.024" (0.6mm)
Differential Travel 0.006" (0.15mm)
Overtravel 0.015" (0.4mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.330" (8.4mm)
Electrical Life 200,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number SS-01
Other Names SS01GP,SS01GPBYOMZ,SW775,SS-01GP BY OMZ
Standard Package 1,000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233416-SS-01GP
Ultra Librarian 3D Model Ultra Librarian SS-01GP CAD Model

Description

The Omron SS-01GP is an electronic component with a category of switches and a SPDT circuit.

  • Win Source Part Number: 1233416-SS-01GP
  • Voltage Rating: 125VAC, 30VDC
  • Current Rating: 100mA (AC/DC)
  • Release Force: 20gf
  • Operating Force: 153gf
  • Mounting Type: Chassis Mount
  • Temperature Range: -25°C to 85°C
  • Mechanical Life: 1,000,000 cycles
  • Electrical Life: 200,000 cycles
