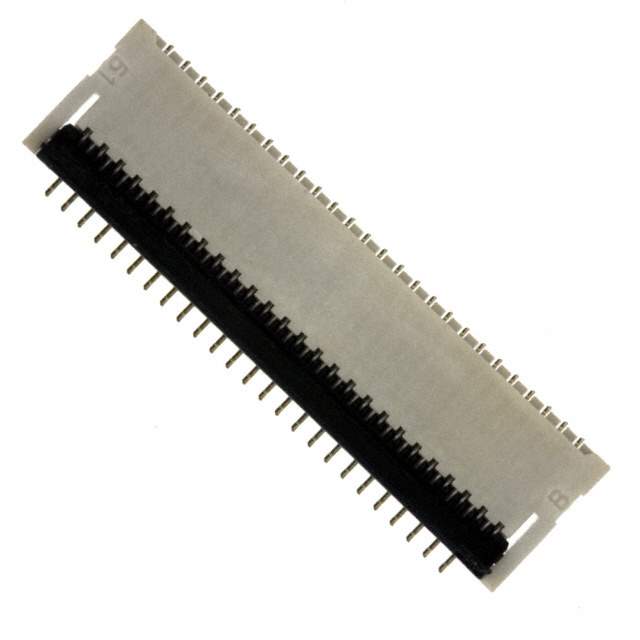

The Omron Electronics Inc-EMC Div XF2B-5145-31A connector is a top and bottom contacts, right angle surface mount, rotary lock, backlock type connector with 51 positions and a pitch of 0.012" (0.30mm).

• Positions: 51
• Pitch: 0.012" (0.30mm)
• Connector Type: FPC connector
• Voltage Rating: 50V
• Current Rating: 0.2A
• Height above Board: 0.083" (2.10mm)
• Housing Material: liquid crystal polymer (LCP), halogen-free housing material with UL94 V-0 material flammability rating
• Actuator Material: also made of LCP, halogen-free material
• Housing Color: natural
• Actuator Color: black
• Mating Cycle: 20
• Operating Temperature Range: -30°C to 85°C
• Ideal for use in: interconnect applications
