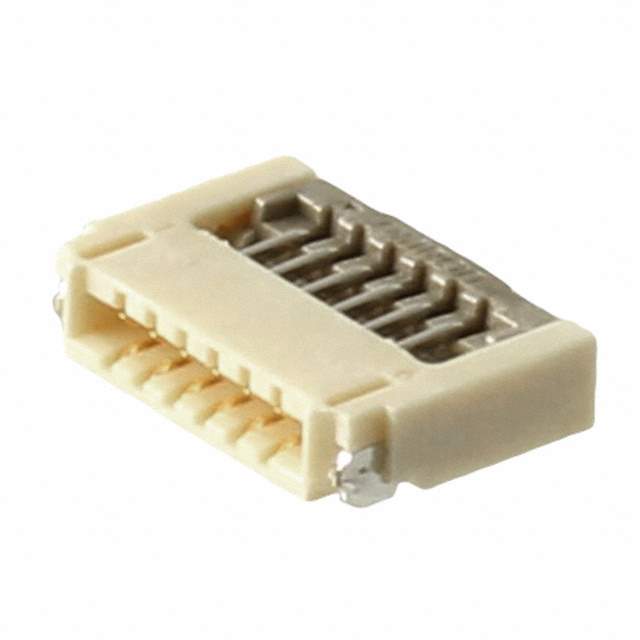

XF2W-0615-1A-R100 Real Image
Same model may have multiple batches, images only for reference.

XF2W-0615-1A-R100

Part No XF2W-0615-1A-R100
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 6POS 0.50MM R/A / 6 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Omron Electronics Inc-EMC Div
Series XF2W
Package Tape & Reel (TR)
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 6
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.044" (1.12mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 5.90µin (0.150µm)
Housing Color Natural
Actuator Color Brown
Mating Cycles 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names XF2W-0615-1A-R100 BY OMZ,XF2W06151AR100,XF2W06151AR100BYOMZ
Standard Package 100
Win Source Part Number 1178579-XF2W-0615-1A-R100
Ultra Librarian 3D Model Ultra Librarian XF2W-0615-1A-R100 CAD Model

Description

The Omron XF2W-0615-1A-R100 is a 6-position FFC, FPC (Flat Flexible) Connector.

  • Pitch: 0.020" (0.50mm)
  • Mounting Type: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 5.90µin (0.150µm)
  • Contact Material: Copper Alloy
  • Voltage Rating: 50V
  • Housing Material: Liquid Crystal Polymer (LCP), Halogen-Free
  • Locking Feature: Rotary Lock and Backlock
  • Mounting Angle: Surface Mount, Right Angle
  • Status: Obsolete
