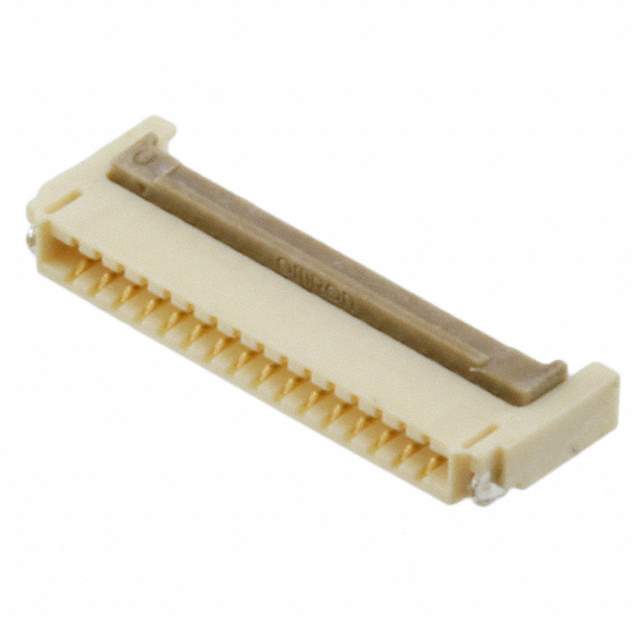

Same model may have multiple batches, images only for reference.

XF2W16151A

Name: XF2W16151A
Brand: Omron
SKU: 1105825
Availability: InStock
Rating: 4.91 (48 reviews)

Get a Quote

Part No	XF2W16151A
Manufacturer	Omron
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	Conn FPC Connector SKT 16 POS 0.5mm Solder RA SMD Reel
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Actuator Material	Liquid Crystal Polymer, Polymer
Contact Location	Dual
Contact Plating	Gold
Contact Resistance	50 mΩ
Current Rating	500 mA
Depth	4.1 mm
Flammability Rating	UL94 V-0
Housing Color	Natural
Housing Material	Polymer
Length	10 mm
Max Current Rating	500 mA
Maximum Operating Temperature	85 °C
Max Voltage Rating (AC)	50 V
Max Voltage Rating (DC)	5.05 kV
Min Operating Temperature	-30 °C
Mount	Surface Mount
Number of Contacts	16
Number of Positions	16
Number of Rows	1
Orientation	Right Angle
Pitch	500 µm
RoHS	Compliant
Termination	Solder
Voltage Rating	50 V
Win Source Part Number	1105825-XF2W16151A
Categories	FFC,FPC(FlatFlexible)Connectors
Manufacturer	Omron
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian XF2W16151A CAD Model

Alternative Products

Description

The Omron XF2W16151A FFC/FPC connector is a 16-position, right-angle connector with a pitch of 500 µm.

Positions: 16
Pitch: 500 µm
Voltage Rating: 50 V
Current Rating: 500 mA
Contact Plating: Gold
Housing Material: Polymer
Contact Resistance: 50 mΩ
RoHS Compliant: Yes
Maximum Operating Temperature: 85 °C
Depth: 4.1 mm
Mounting Type: Surface Mountable
