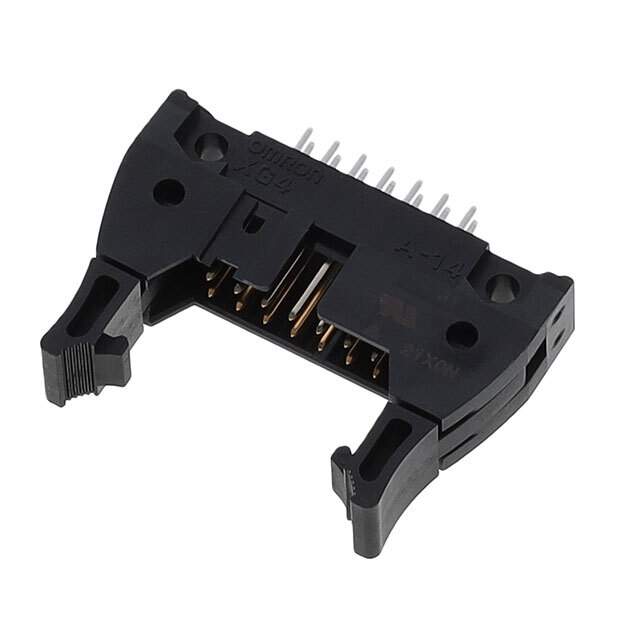

XG4A-1431 Real Image
Same model may have multiple batches, images only for reference.

XG4A-1431

Part No XG4A-1431
Manufacturer Omron
Catalog Rectangular Connectors
Description Industry Standard Circuit Board Connectors Conform to MIL Standards | CONN HEADER VERT 14POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.657" (16.70mm)
Insulation Height 0.669" (17.00mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 5.90μin (0.150μm)
Contact Finish - Post Tin
Contact Material Brass, Nickel
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 300V
Mated Stacking Heights 23.5mm
Contact Finish Thickness - Post 78.7μin (2.00μm)
Manufacturer Pack Quantity 80
MSL Level 1 (Unlimited)
Win Source Part Number 1282112-XG4A-1431
Manufacturer Homepage www.omron.com/index3.html
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian XG4A-1431 CAD Model

Description

The XG4A-1431 is a connector type header that is commonly used in various electronic devices.

  • Win Source Part Number: 1282112
  • Packaging: tray package
  • Shrouding: shrouded - 4 wall shrouding
  • Insulation Material: polybutylene terephthalate (PBT), glass filled
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: gold with a thickness of 5.90μin (0.150μm)
  • Temperature Range: -55°C ~ 105°C
  • Current Rating: 3A
