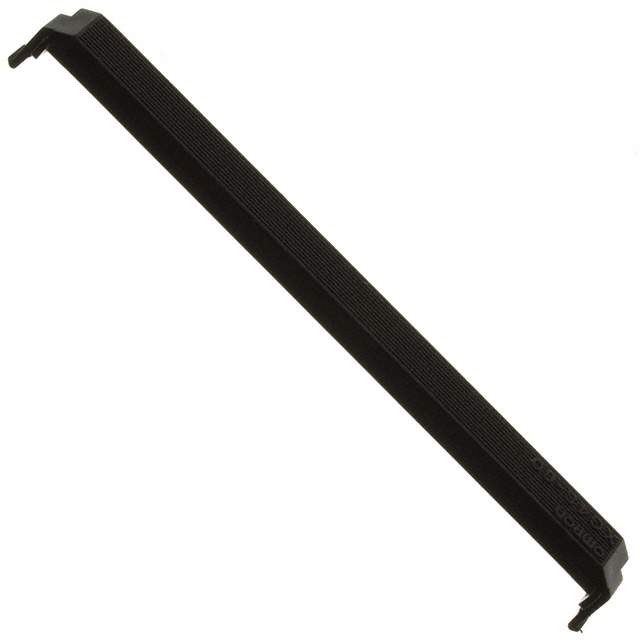

The XG4S-6004 is a 60-position IDC (Insulation Displacement Connector) socket connector manufactured by Omron. It is designed for connecting flat ribbon cables to PCBs (Printed Circuit Boards). This connector is commonly used in various electronic devices for reliable signal and power transmission.

Applications

• Internal wiring in electronic devices
• Connecting PCBs with flat ribbon cables
• Signal and power transmission in control systems
• Industrial equipment
• Data acquisition systems

Features

• Number of Positions: 60
• Connector Type: IDC Socket
• Cable Type: Flat Ribbon Cable
• Pitch: Typically 2.54mm (0.1 inch)
• Termination Method: Insulation Displacement
• Mounting Type: Cable Mount
• Material: Typically PBT or similar high-quality plastic

Benefits

• Quick and Easy Termination: IDC technology allows for fast and reliable termination of flat ribbon cables without the need for soldering.
• High Density: 60 positions provide a high density of connections in a compact form factor.
• Reliable Connection: Provides a secure and stable connection, ensuring consistent signal and power transmission.
• Cost-Effective: IDC connectors reduce assembly time and labor costs compared to traditional soldering methods.
• Versatile: Suitable for a wide range of applications requiring flat ribbon cable connections.

Additional Details
