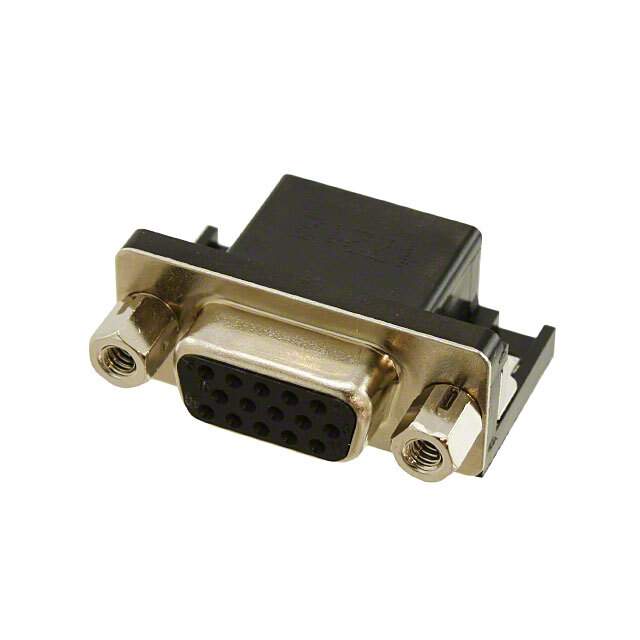

Part No XM4L-1542-132
Manufacturer Omron
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB HD RCPT 15P R/A SLDR / 15 Position D-Sub, High Density Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Omron Electronics Inc-EMC Div
Series XM4L
Package Bulk
Product Status Obsolete
Connector Style D-Sub, High Density
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 3
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E) High Density
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Backset Spacing 0.350" (8.89mm)
Features Board Lock, Shielded
Voltage Rating 300V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Temperature Range - Operating -25°C ~ 105°C
Base Product Number XM4L
Standard Package 90
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1351460-XM4L-1542-132
Ultra Librarian 3D Model Ultra Librarian XM4L-1542-132 CAD Model

Description

The XM4L series D-Sub high density connector is a receptacle with female sockets.

  • Series: XM4L
  • Connector Type: D-Sub High Density
  • Number of Positions: 15
  • Number of Rows: 3
  • Features: Board Lock, Shielded
  • Contact Finish: Gold with Flash Finish Thickness
  • Contact Material: Phosphor Bronze
  • Connector Style: D-Sub
  • Voltage Rating: 300V
  • Shell Material: Steel
  • Shell Finish: Steel
  • Dielectric Material: Polybutylene Terephthalate (PBT)
  • Mounting Type: Through Hole, Right Angle
  • Temperature Range: -25°C ~ 105°C
  • Mating Side Feature: Flange, Female Screwlock (4-40)
  • Backset Spacing: 0.350" (8.89mm)
  • Material Flammability Rating: UL94 V-0
  • ECCN: EAR99
  • Status: Obsolete
  • Standard Package: 90 units
